Easystand Zing – MPS

The Easystand Zing is a range of paediatric standing frames with groundbreaking frame design and an extensive range of options that further distinguish it from all other paediatric standers.

The Easystand Zing’s modular design helps ensure the optimum stander configuration is available for every child.

There are two sizes and six models in the Easystand Zing range to choose from.

Download Brochure
Categories: , , ,

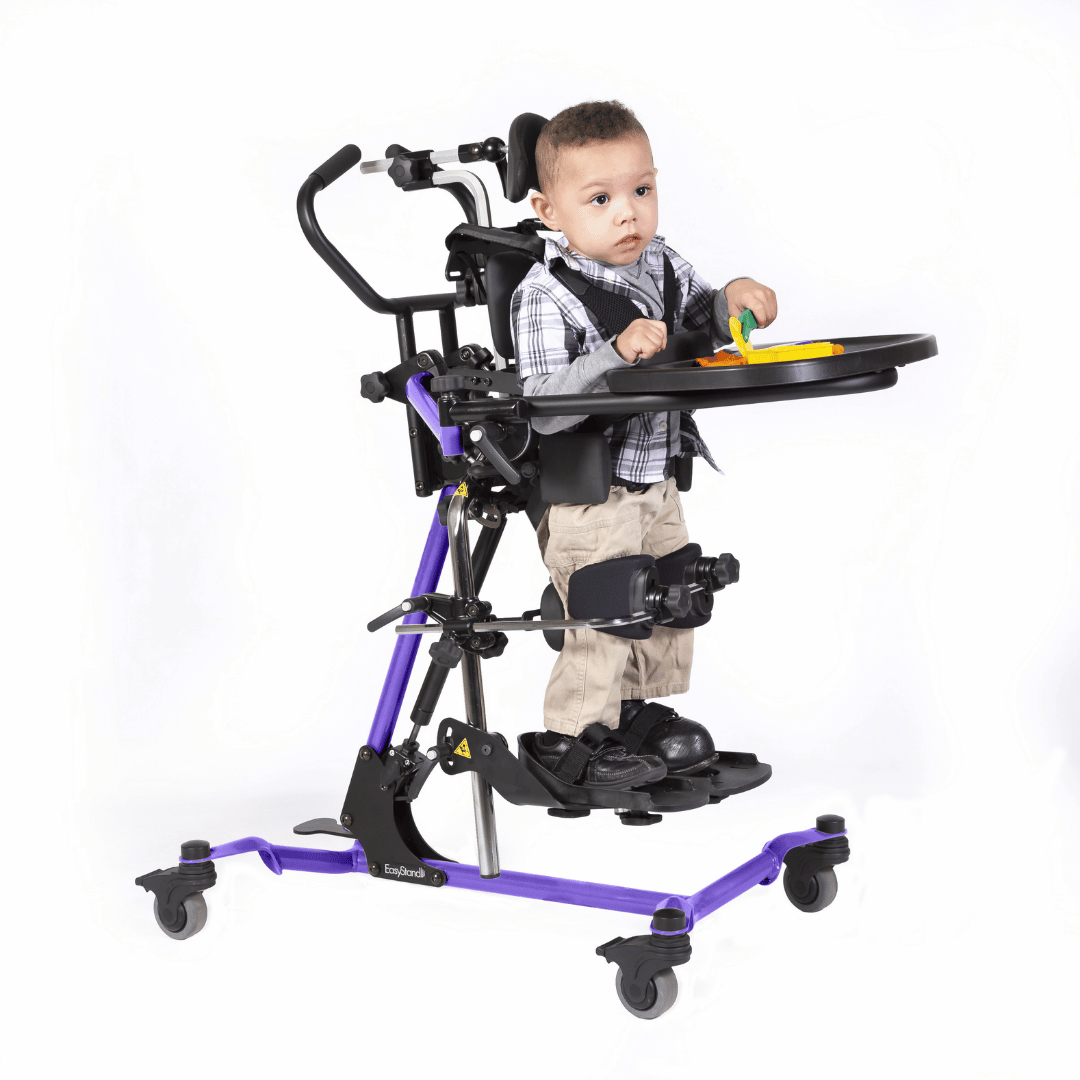

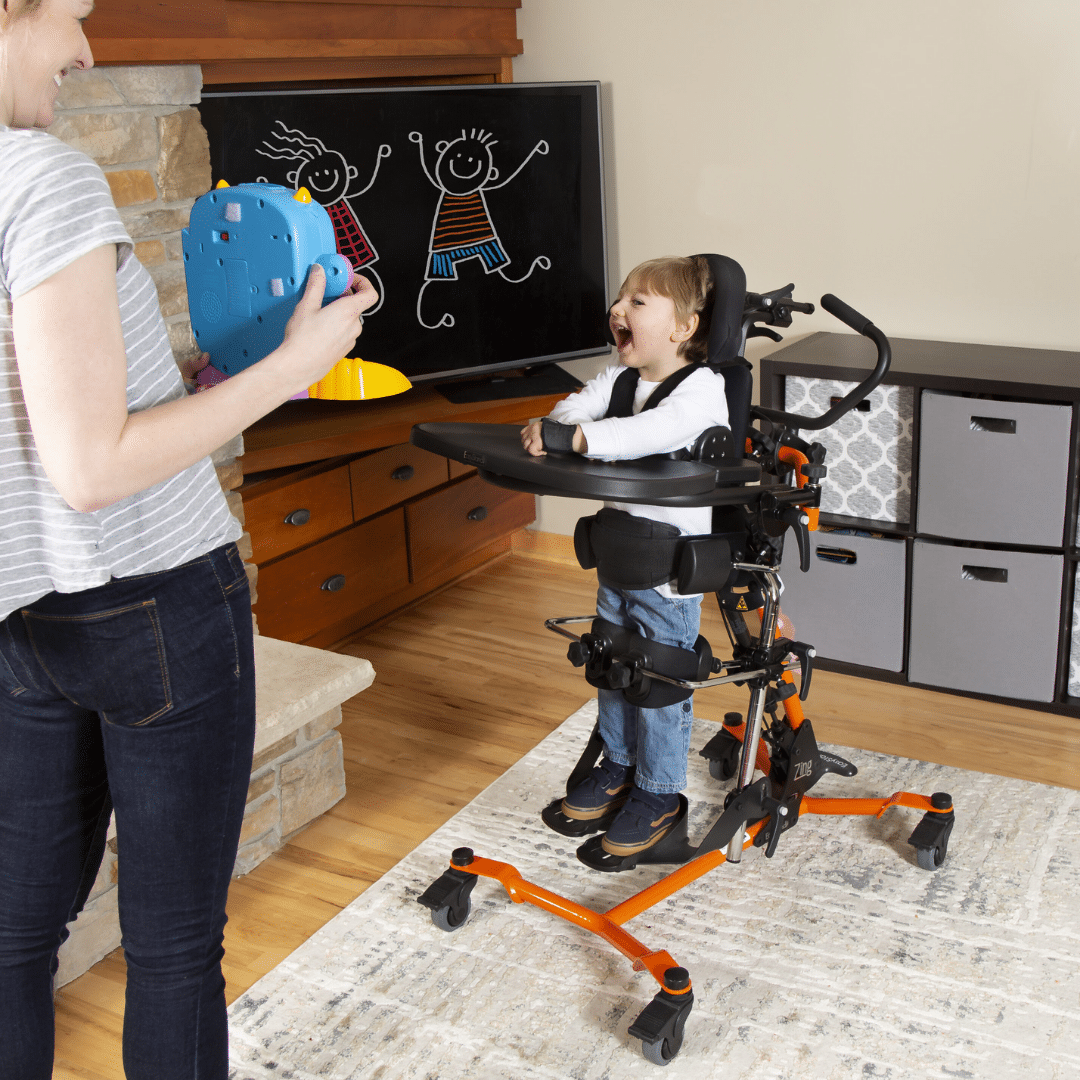

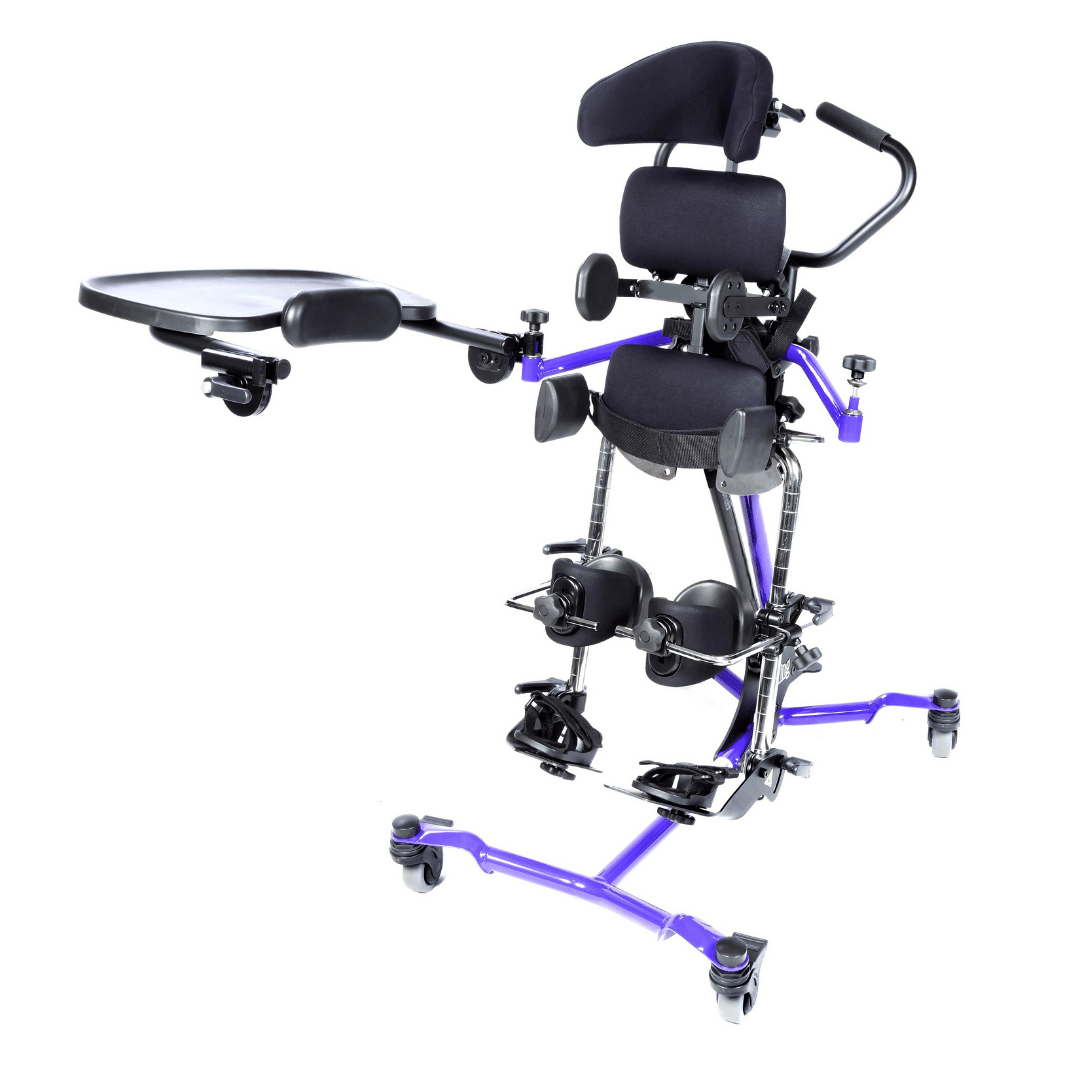

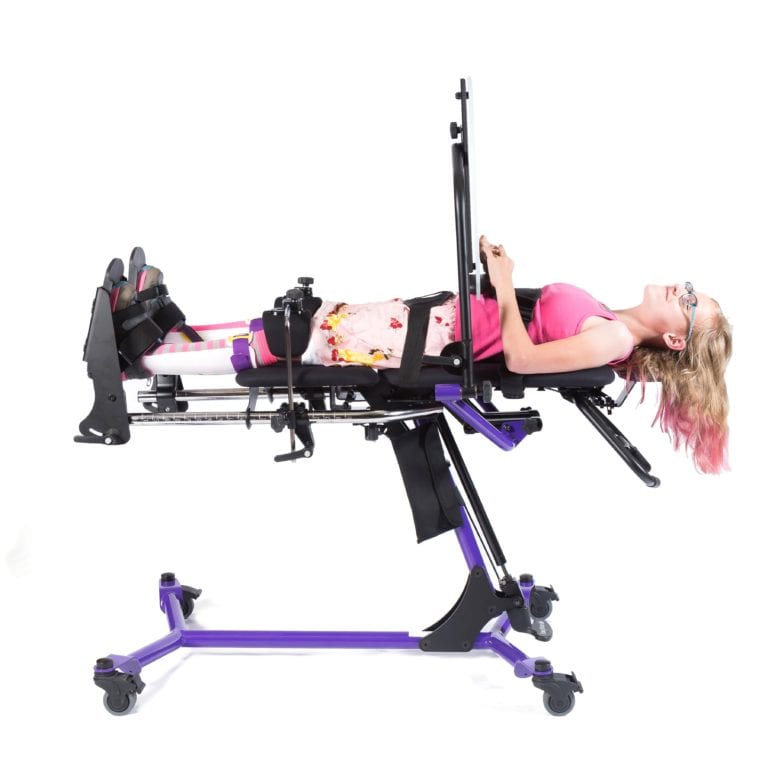

The EasyStand Zing Multi-Position Stander (MPS) is the only paediatric stander that allows a child to seamlessly go from full supine to prone without having to change, turn or flip pads, trays, and foot plates or transfer a child in and out of the stander.  In one fluid motion, the child can be positioned between supine, upright and prone.  This ability provides a therapeutic opportunity not possible with other standing frames.

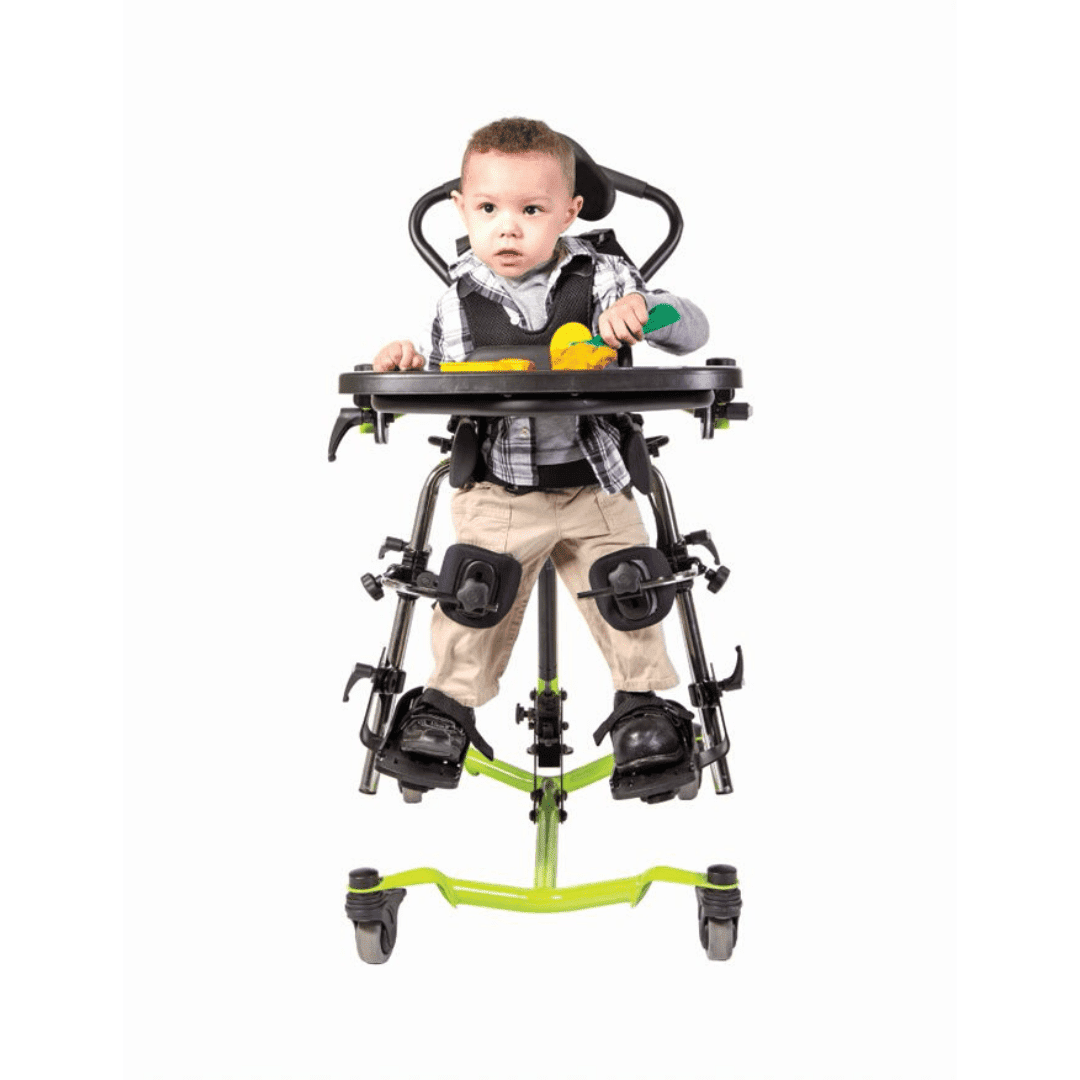

It is also one of the few standers that provides the option of up to 30 degrees of independent leg abduction. Because the abduction pivot point is in alignment with the natural hip pivot of the user, the entire leg abducts eliminating the need to adjust foot plates or knee pads. Not only does this provide anatomically correct abduction, but rotating hip guides and only having to loosen a single knob per leg enables simple and intuitive standing in abduction.

The EasyStand Zing’s modular design helps ensure the optimum stander configuration is available for every child.   Adjusting the Zing is done easily without tools, which makes standing in the Zing easier, which also improves compliance with standing programs.

There are two Sizes (Size 1 and 2) and six models in the Easystand Zing range:

  • Zing MPS

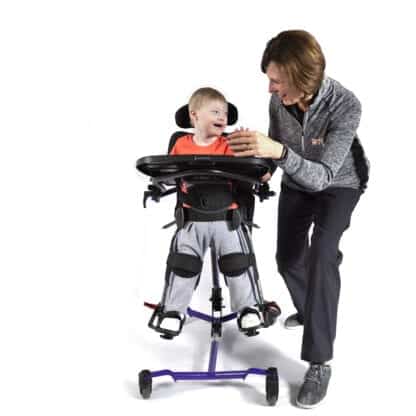

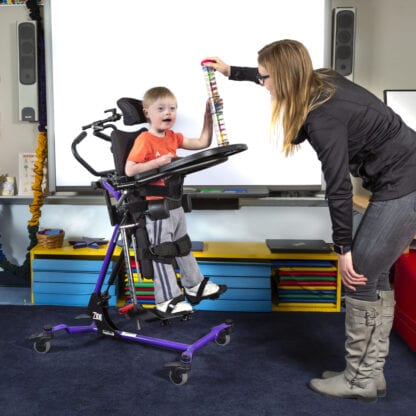

  • Zing MPS Tilt Table
  • Zing Supine
  • Zing Supine Tilt Table
  • Zing Vertical

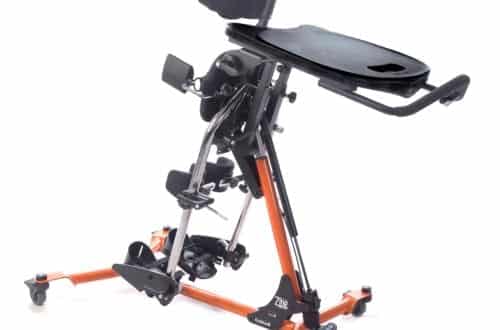

  • Zing Prone

We offer a full assessment service as well as a free trial.
Please complete our online enquiry form and request an assessment.
Together we can tailor a solution that fits your unique needs and abilities.

Enquire Now

Specifications



Basic Unit Imperial Metric
Height range up to 44” up to 112 cm
Weight limit 70 lbs. 32 kg
Transfer height(horizontal position) 32” 81 cm
Centre of pelvic support to footplate range, may invert footplates as necessary 7″ – 22” 18 cm- 56 cm
Upper body support height range 4” 10 cm
Kneepad depth range 5” 13 cm
Kneepad inside width 2.5”, 3.25”, 4.25″, 5″ 6cm, 8cm, 11cm, 13cm
Kneepad dimensions
2.5 3.5”x4” 9 x 10 cm
3.25 4”x4” 10 x 10 cm
4.25 4.5”x5” 11 x 13 cm
5.00 5”x6” 13 x 15 cm
Multi-adjustable knee pads width range, centre-to-centre
2.5 4”- 9” 10 – 23 cm
3.25 4.5”- 9” 11 – 23 cm
4.25 5” – 8” 13 – 20 cm
5.00 6” – 7” 15 – 18 cm
Multi-adjustable knee pads height range +/- 0.75” 2 cm
Weight of basic unit 55 lbs. 25 kg
Frame footprint, caster-to-caster 20” x 28” 51 x 71cm
Maximum dimensions 21.5 x 29.5 55 x 75cm
Upholstery Black nylon/Neoprene or Molded Urethane
Hygienic Ccovers Polyurethane Laminate ECO-PUL
Frame colour Green, Purple, Orange, or White
Casters and wheels 3’’ diameter 8cm diameter
Lifting mechanisms available Gas Spring
Lift options Dual Control (hand lever) Lockout Knob
Options and Accessories
Supine positioning/ Prone-forward positioning. Supine, MPS, TT Supine 0-90 degrees/ Prone 0-20 degrees
Positioning, prone model 90 (vertical) to 0 (horizontal)
Positioning, vertical model 90 (vertical) only.  Fixed position.
Leg abduction 30 degrees per side
Foot straps extra small – length over arch 8” 20 cm
10” 25 cm
Secure foot straps – length over arch Available in same lengths as regular foot straps
Footplate options LxW 6.00” L x 3.00” W 15 cm L x 8 cm W
7.75” L x 3.25” W 20 cm L x 9 cm W
9.75” L x 4” W 25 cm L x 11 cm W
Footplate, platform style 8”L x 12.00” W 20 cm L x 30 cm W
Multi-adjustable footplates – Plantar/Dorsi +/- 20 degrees +/- 20 degrees
Multi-adjustable footplates – Fore/Aft +/- 0.75” +/- 2 cm
Multi-adjustable footplates rotation 30 degrees left/right 30 degrees
left/right
Single calf pad/leg rest 4” x 13.5” 10 x 34 cm
Single calf pad strap, fits circumference 24” 61 cm
Calf (behind knee) pad option, extra small pad size, small pad size, Fore/Aft adjustment from seat plane 3.5 x 3.5 inches, 4.5 x 4.5 inches, -1 to +4 inches 9 x 9 cm 11.5 x 11.5 cm -2.5 to +10 cm
Independent planar leg (calf) support tilt table (TT) pads – 3 sizes 4” x 6”, 6” x 6”, 8” x 6” 10 x 15 cm 15 x 15 cm 20 x 15 cm
Independent planar leg (calf) support tilt table (TT) pad strap – Fits circumference: Up to 15” 38 cm
Table mount and tray options/specs Posterior Support Models (Supine, MPS, TT)
Shadow tray size – molded/acrylic 11”x19” 28 cm x 48 cm
Shadow tray height range 3” 8 cm
Shadow tray fore/aft range (from posterior pad to chest pad) 0” – 10” 0–25 cm
Swing-away tray size – molded/acrylic 11”x19” 28 cm x 48 cm
Swing-away tray height range 3” 8 cm
Swing-away tray fore/aft range (from posterior pad to chest pad) 4”- 9” 10 to 23 cm
Swing-away tray angle adjust range +40 degree inclines to -90 degrees (parallel to user when standing or in supine mode)
Upholstery/positioning options/specs
Hip support pad size 3.5”H x 3.5”W 9cm x 9cm
Hip supports width range 6” – 10” 15-25 cm
Lateral support pad size 3.5”H x 3.5”W 9cm x 9cm
Lateral supports width range 7” – 11” 10 to 20
18-28 cm
Lateral supports height range 3.5” 9 cm
Lateral supports fore/aft range 1” 3 cm
Pelvic support planar (2 sizes) all configurations 5×7” 5×9” 13cm x 18cm
13cm x 23cm
Pelvic support, form-to-fit (2 sizes) posterior support (Supine, MPS, TT) 5″x7”, 5″x9” 13cm x 18cm
13cm x 23cm
Pelvic support form-to-fit (2 sizes) anterior support (prone and vertical) 5″x10”, 5″x12” 13cm x 25cm 13cm x 30cm
Upper body support planar 5″x5” (Anterior only), 5”x7”, 5”x9”, 7″x7”, 7″x9” 13cm x 13cm 13cm x 18cm 13cm x 23cm 18 x 18 cm 18 x 23 cm
Upper body support form-to-fit 5”H x 10”W, 5”H x 12”W, 7”H x 10”W, 7”H x 12”W 13cm x 25cm 13cm x 30cm 18cm x 25cm 18cm x 30cm
Upper body/pelvic tilt table (TT) pads – 3 sizes 14”L x 14”W 16”L x 14”W 18”L x 14”W 36 x 36 cm 41 x 36 cm 46 x 36 cm
Chest pad 3”Hx8”W 8cm x 20cm
Chest strap (pad size) 5″Hx8”W 13 x 20 cm
Chest strap (approximate user circumference) Up to approx. 24” Up to approx. 61 cm
Chest vest – X-style 9.5”Lx9”W 24 x 23 cm
Chest vest – X-style 11”Lx9.5”W 28 x 24 cm
Posterior Head Supports (Supine, MPS, TT)
Head support height range. (From top of upper body pad) 8” 20 cm
Head support depth range – from backrest -2.5” to +1.5” -6 to +4 cm
Head support size extra-small 5” H x 8” W Cushion 13 cm H x 20 cm W
Head support size small 6” H x 10” W Cushion 15 cm H x 25 cm W
Flat headrest 5” H x 7” W 13cm x 18cm
Form-to-fit head support – height, width, variable up to approximately: 5”, 10” 13 cm 25 cm
TT planar head support 8” H x 8.5” W 20 cm H  x 22
cm W
Anterior Head Supports (Prone, Vertical)
Face aperture 2 – 3 x 9” Pads 8cm x 23cm
Positioning belt – hip circumference Up to approx.. 24”  Up to approx.. 61 cm
Configurations Available:
Supine Posterior Support Pads
MPS (Multi-positional Stander, w/Prone Forward)
TT (Tilt Table, larger upholstery surfaces)
Prone Anterior support pads
Vertical (fixed position, no lift options available)

Request Demonstration

Product Enquiry

Product Enquiry

We offer a full assessment service as well as a free trial. Please complete our online enquiry form and request an assessment. Together we can tailor a solution that fits your unique needs and abilities.

Options

Frame Colour


  • Green


  • Orange


  • Purple


  • White

Mast

  • PA5530 Mast

    PA5530 Mast


  • PA5532 Mast with Leg Abduction

Lift Mechanisms

  • PA5612 Dual Control

    PA5612 Dual Control


  • PA5614 Gas Spring Lift Lockout

Caster

  • PA5608 Directional Locking Caster

    PA5608 Directional Locking Caster

Foot Plates

  • PA5536 Platform Foot Plate

    PA5536 Platform Foot Plate


  • PA5624 Multi-Adjustable Foot Plates 6″Lx3″W


  • PA5626 Multi-Adjustable Foot Plates 7.75″Lx3.25″W


  • PA5628 Multi-Adjustable Foot Plates 9.75″Lx4″W

Foot Support Accessories

  • PA5540 Foot Holders for Platform Foot Plate 6"Lx3"W

    PA5540 Foot Holders for Platform Foot Plate 6″Lx3″W

  • PA5542 Foot Holders for Platform Foot Plate 7.75"Lx3.25"W

    PA5542 Foot Holders for Platform Foot Plate 7.75″Lx3.25″W

  • PA5544 Foot Holders for Platform Foot Plate 9.75"Lx4"W

    PA5544 Foot Holders for Platform Foot Plate 9.75″Lx4″W


  • PA5546 Secure Foot Straps 8″L


  • PA5548 Foot Straps 8″L


  • PT50080 Foot Straps 10″L


  • PT50082 Secure Foot Straps 10″L

Knee Support

  • PA5550 Calf/Knee Pad with Strap

    PA5550 Calf/Knee Pad with Strap


  • PA5556 Multi-Adjustable Knee Pads-Inside Width 2.5”


  • PA5558 Multi-Adjustable Knee Pads-Inside Width 3.25”


  • PA5729 Multi-Adjustable Knee Pads 4.25″


  • PA5730 Multi-Adjustable Knee Pads 5″


  • PA5734 Posterior Knee Pads-3.5″


  • PA5736 Posterior Knee Pads-5″

Knee Support Accessories


  • PA5560 Multi-Adjustable Calf Pads 3.5″


  • PA5678 Multi-Adjustable Calf Pads 4.5″


  • PA5731 Knee Depth Stop

Pelvic Support


  • PA5562 Planar Pad 5″Hx7″W


  • PA5564 Planar Pad 5″Hx9″W


  • PA5566 Form to Fit Pad 5″Hx10″W


  • PA5570 Form to Fit Pad 5″Hx12″W

Pelvic Support Accessories


  • PA3011 Positioning Strap


  • PA3028 Hygienic Cover for PA5562/PA3006


  • PA3029 Hygienic Cover for PA5564/PA3007


  • PA3030 Hygienic Cover for PA5566


  • PA3032 Hygienic Cover for PA5570


  • PA5574 Hip Supports


  • PA5610 Padded Positioning Strap

Upper Body Support


  • PA5562 Planar Pad 5″Hx7″W


  • PA5564 Planar Pad 5″Hx9″W


  • PA5568 Form to Fit Pad 5″Hx10″W


  • PA5572 Form to Fit Pad 5″Hx12″W


  • PA5616 Planar Pad 7”Hx7″W


  • PA5618 Planar Pad 7”Hx9″W


  • PA5620 Form to Fit Pad 7″Hx10″W


  • PA5622 Form to Fit Pad 7″Hx12″W

Upper Body Support Accessories


  • PA3028 Hygienic Cover for PA5562/PA3006


  • PA3029 Hygienic Cover for PA5564/PA3007


  • PA3031 Hygienic Cover for PA5568


  • PA3033 Hygienic Cover for PA5572


  • PA3039 Hygienic Cover for Lateral Supports


  • PA3045 Hygienic Cover for PA5616/PA3041


  • PA3046 Hygienic Cover for PA5618/PA3042


  • PA3047 Hygienic Cover for PA5620


  • PA3048 Hygienic Cover for PA5622


  • PA5576 Lateral Supports


  • PA5578 Lateral Supports with Elbow Stop


  • PA5580 Lateral Supports with Elbow Stop and Arm Rest


  • PA5610 Padded Positioning Strap


  • PA5630 Elbow Stop with Arm Rest


  • PA5743 Lateral Supports – 7″-11″W Range Flat Pads


  • PA5744 Lateral Supports-7″-11″W Range Curved Pads


  • PB3029 Hygienic Cover for PB3001


  • PT50086 X-Style Chest Vest 9.5″Lx9″W


  • PT50088 X-Style Chest Vest 11″Lx9.5″W

Head Support


  • PA5586 Head Support – Form to Fit 5″Hx10″W


  • PY5626 Head Support 5″Hx8″W


  • PY5628 Head Support 6″Hx10″W

Head Support Accessories


  • PA3035 Hygienic Cover for Head Support 5″Hx8″W


  • PA3036 Hygienic Cover for Head Support 6″Hx10″W


  • PA3037 Hygienic Cover for Head Support – Form to Fit

Tray


  • PA5596 Black Molded Tray – 11″Lx19″W


  • PA5600 Black Molded Swing-Away Tray – 11″Lx19″W


  • PA5602 Clear Swing-Away Tray – 11″Lx19″W

Tray Accessories


  • PA3038 Hygienic Padded Tray Cover


  • PA5604 Forearm Wings – Black Molded Tray


  • PA5606 Forearm Wings – Clear Tray


  • PNG50042 Hand Grips

Other Accessories


  • P80246 Angle Locator


  • P80809 Tool Pouch


  • PA5594 Push Handle

Hygienic Cover Patterns


  • All Smiles Animals


  • Fancy Pants Elephants


  • Rainbow Unicorn


  • Sea Creatures


  • Space Race
