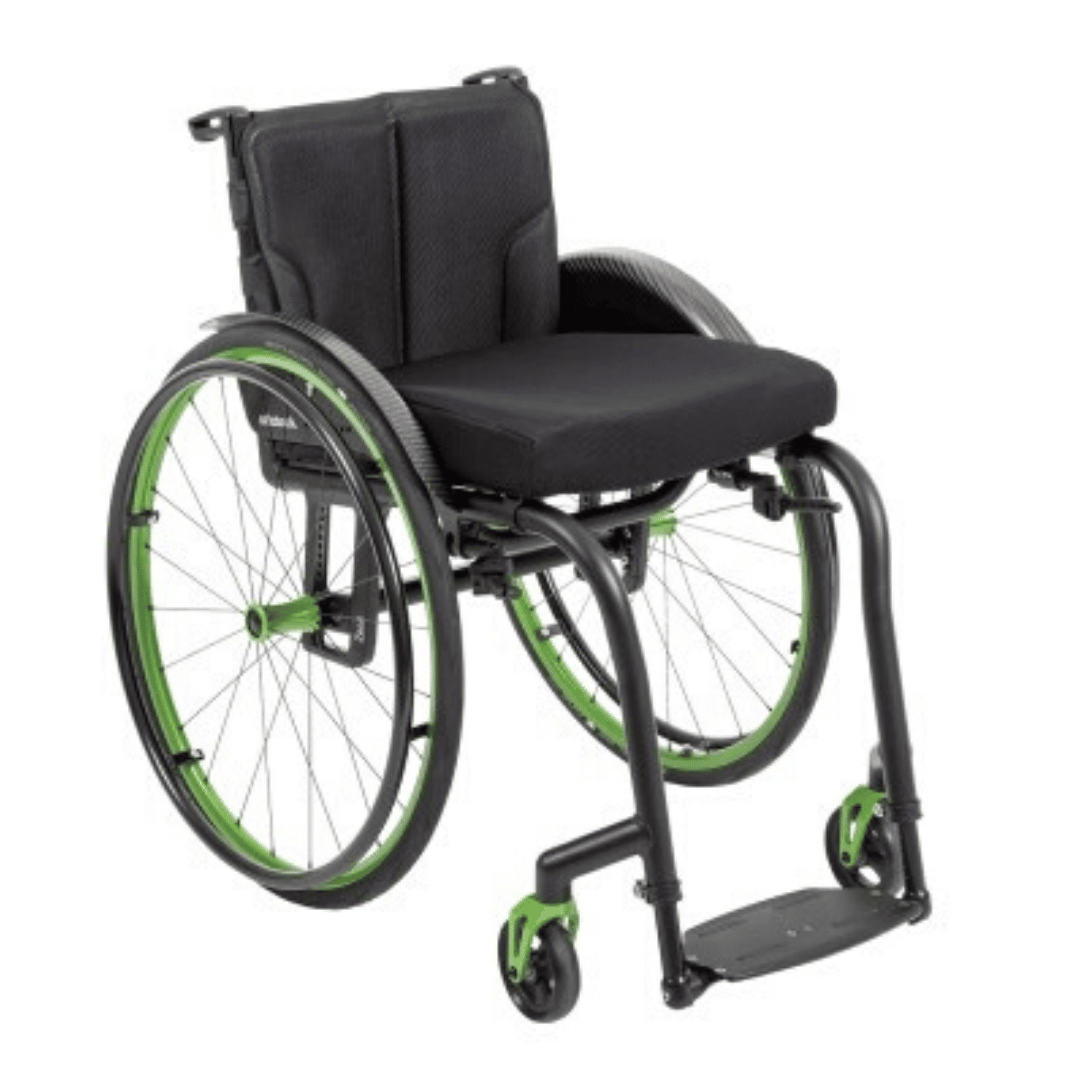

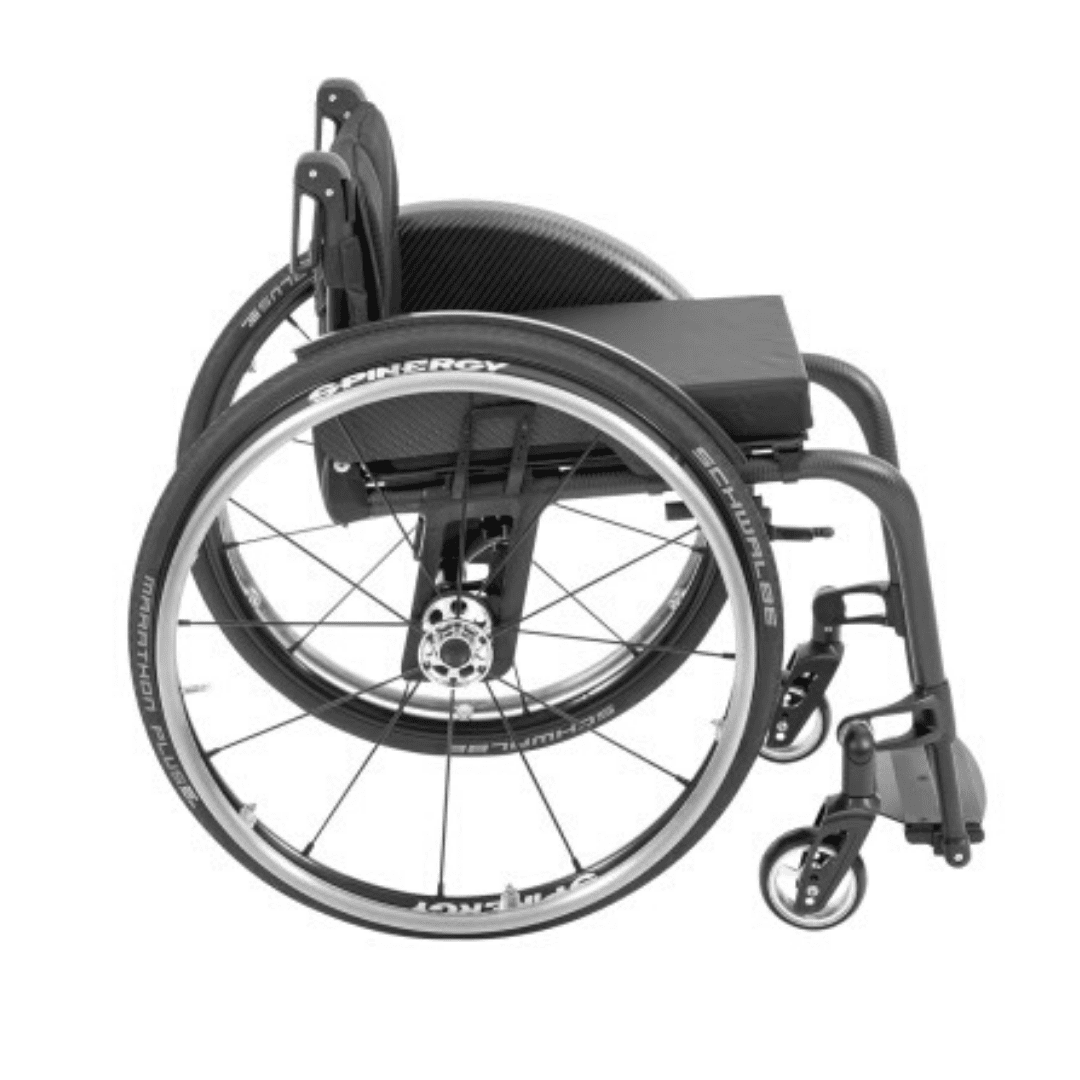

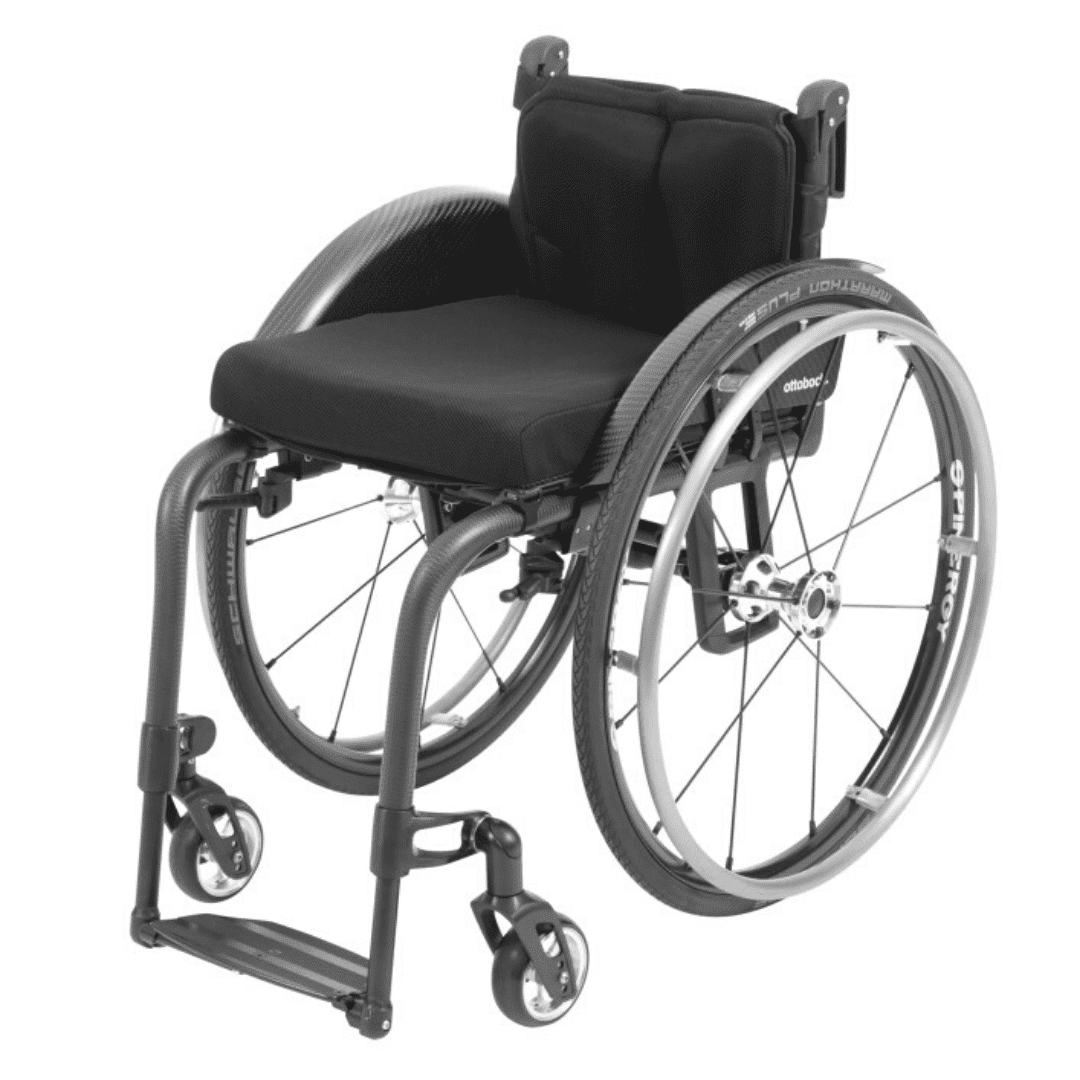

Ottobock Zenit R

The Ottobock Zenit is a folding wheelchair with the look and driving characteristics of a rigid frame wheelchair. Thanks to the patented Easy-Go folding system, the Zenit can be unfolded with very little effort.

The folding mechanism and the folding back constitute an unbeatable combination for obtaining an optimum transportation size. The Zenit is impressively lightweight without sacrificing stability and offers a variety of options for the user.

All of this is combined in the Zenit with a minimalist design and the available material mix. The Zenit R is available in aluminium, carbon and in a permanently welded CLT version.

This product is not available for purchase online.

Description

The Ottobock Zenit is a folding wheelchair with the look and driving characteristics of a rigid frame wheelchair. Thanks to the patented Easy-Go folding system, the Zenit can be unfolded with very little effort.

The folding mechanism and the folding back constitute an unbeatable combination for obtaining an optimum transportation size. The Zenit is impressively lightweight without sacrificing stability and offers a variety of options for the user.

All of this is combined in the Zenit with a minimalist design and the available material mix. The Zenit R is available in aluminium, carbon and in a permanently welded CLT version.

Benefits at a glance:

  • Stylish, configurable high-end rigid frame wheelchair
  • Made of high-quality materials optimised for low weight
  • Excellent stability and ease of operation
  • Flexibly adjustable or permanently welded according to customer preferences
  • Optional style package with coloured drive wheel rims and caster forks

Key features:

  • Easy-Go folding system
  • Closed front frame with integrated footrest
  • Open frame construction with folding function
  • Compact dimensions and small folding size

We offer a full assessment service as well as a free trial.
Please complete our online enquiry form and request an assessment.
Together we can tailor a solution that fits your unique needs and abilities.

Enquire Now

Specifications

Technical information
Seat width 320–460 mm
Front seat height 380–540 mm
Rear seat height 370–500 mm
Seat depth 360–520 mm
Overall length 720–1040 mm
Overall width 490–725 mm
Overall height 580–1100 mm
Back height 250–500 mm
Lower leg length 160–510 mm
Folding size from 260 mm
Max. load capacity 100/140 kg
Weight from approx. from approx. 9kg
Front frame angle 75°/85°

Request Demonstration

Product Enquiry

We offer a full assessment service as well as a free trial. Please complete our online enquiry form and request an assessment. Together we can tailor a solution that fits your unique needs and abilities.

Options

Zenit R CLT
Thanks to permanently welded components, the CLT version features a low weight and high stability, maximising the efficiency of force transmission and dynamics while driving.

Highlights
Permanently welded components:
Back support

Drive wheel adaptor (centre of gravity adjustment by ±12 mm possible)

Brake connection

Caster wheel connection

Lower leg length (optionally adjustable)

Side panel mountings

Zenit R aluminium / carbon
Numerous adjustment possibilities make the Zenit R extremely flexible and permit an individual fitting. Its optimised rigid frame characteristics provide a new quality of mobility.

Highlights
Centre of gravity adjustment down to the millimetre

Adjustable seat height and lower leg length

Adjustable back support angle

Smooth, patented caster wheel attachment

Folding back support with adjustable back upholstery and folding push handles
