R-Trak Rear Wheel Drive Powerchair
R-Trak Rear Wheel Drive Powerchair

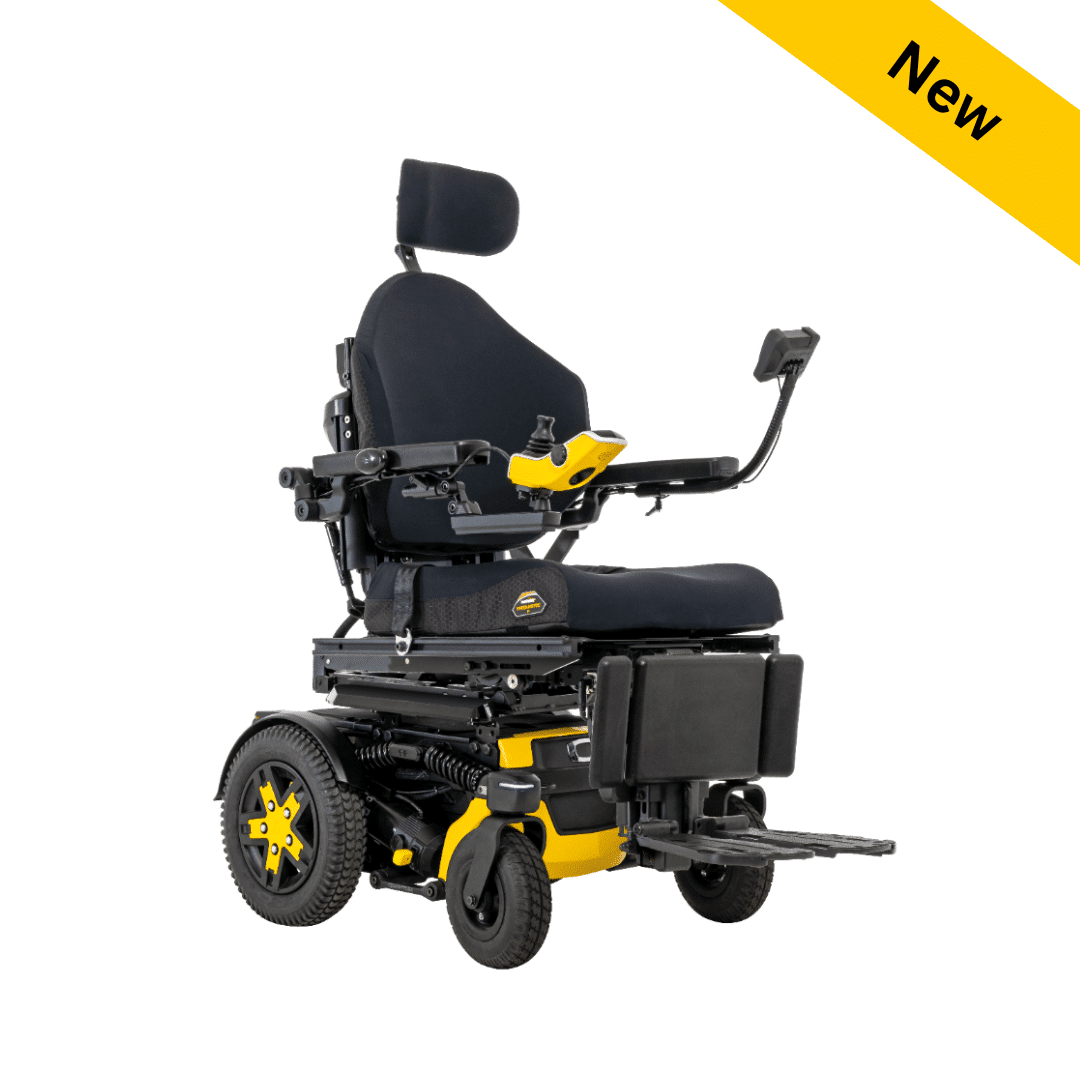

Quantum R-TRAK Powerchair

The revolutionary R-TRAK power base combines the stability of a classic rear-wheel drive power chair with unprecedented comfort. The integration of our Smooth Ride Suspension (SRS) technology and its uniquely positioned Center of Gravity (CoG) provide stability, comfort, and unmatched driving performance, making obstacle transitions smoother.

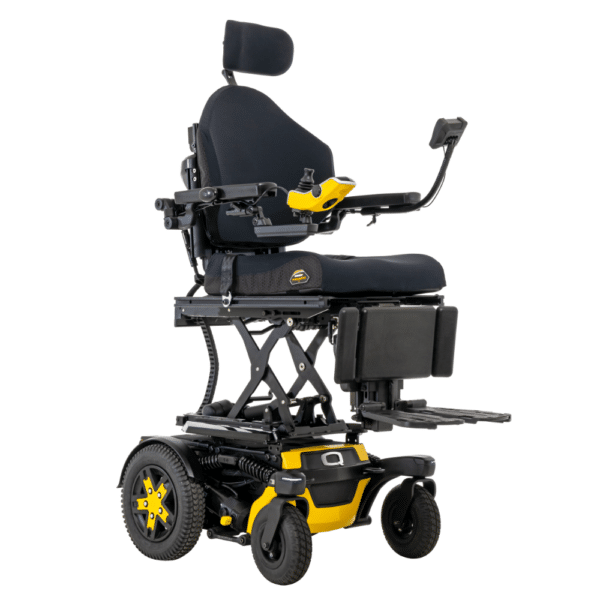

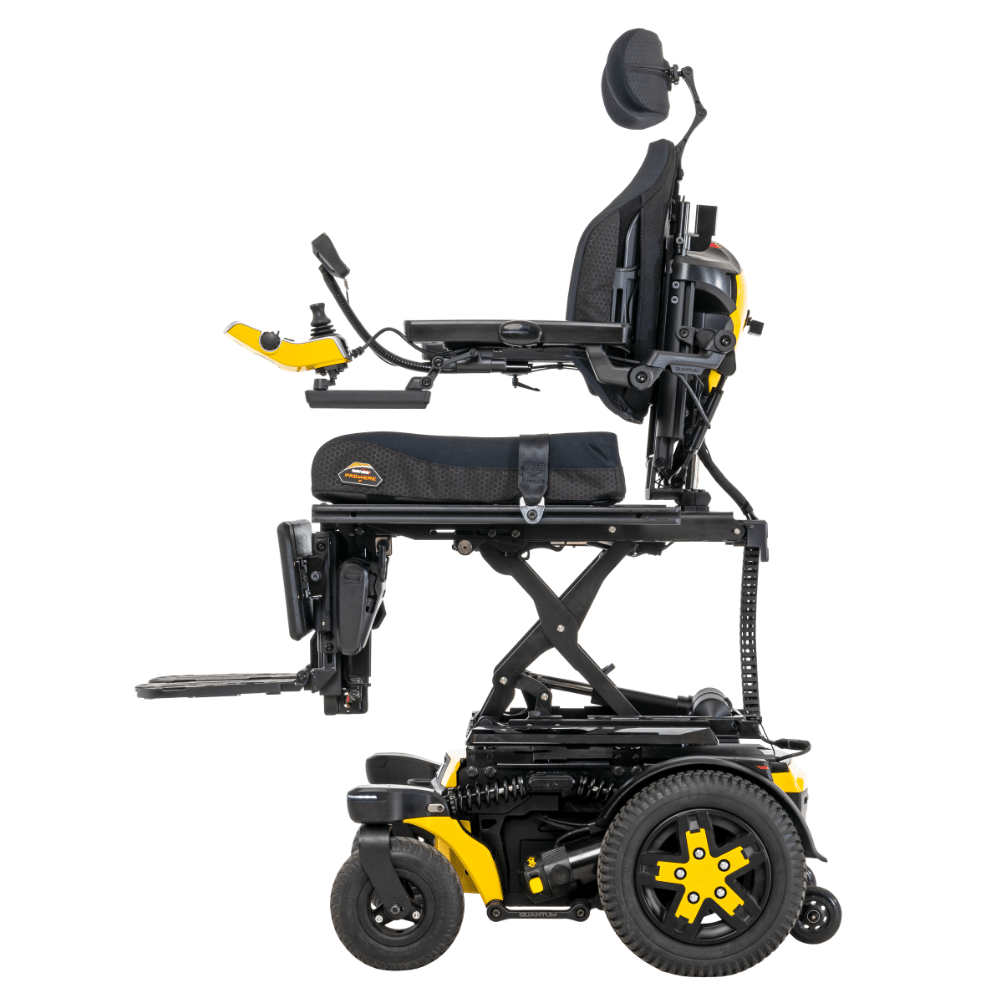

The R-TRAK also makes for a more maneuverable driving experience compared to other rear wheel drive bases, as it boasts a narrow 24.2” base, providing greater environmental access. It also has a top speed of up to 7 mph (11 kph), or 3.5 mph (6 kph) while elevated up to 10” with Safe Seat Elevation.

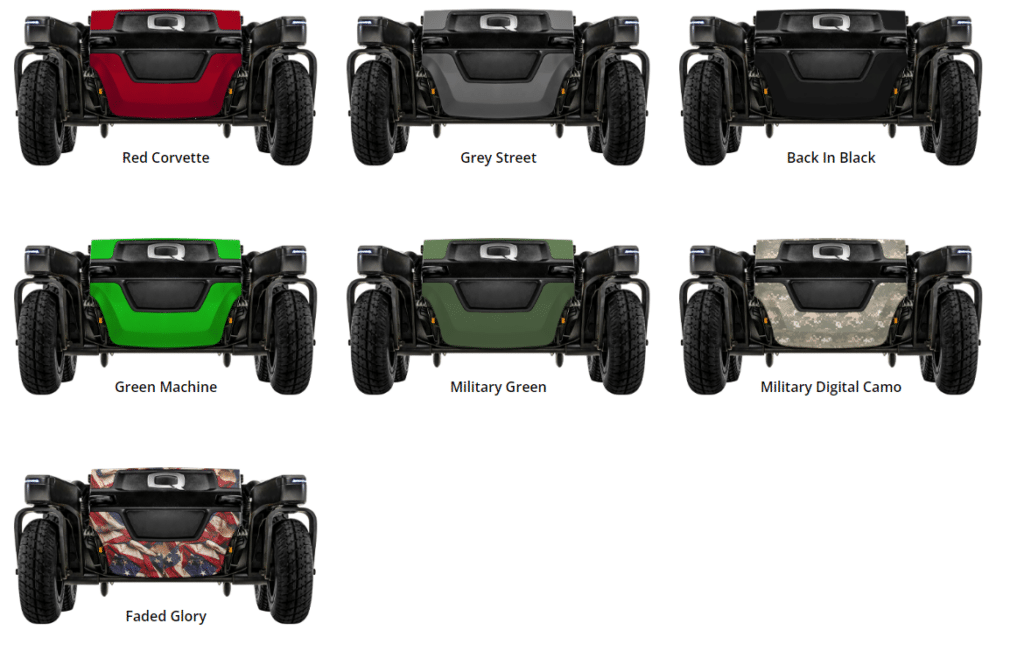

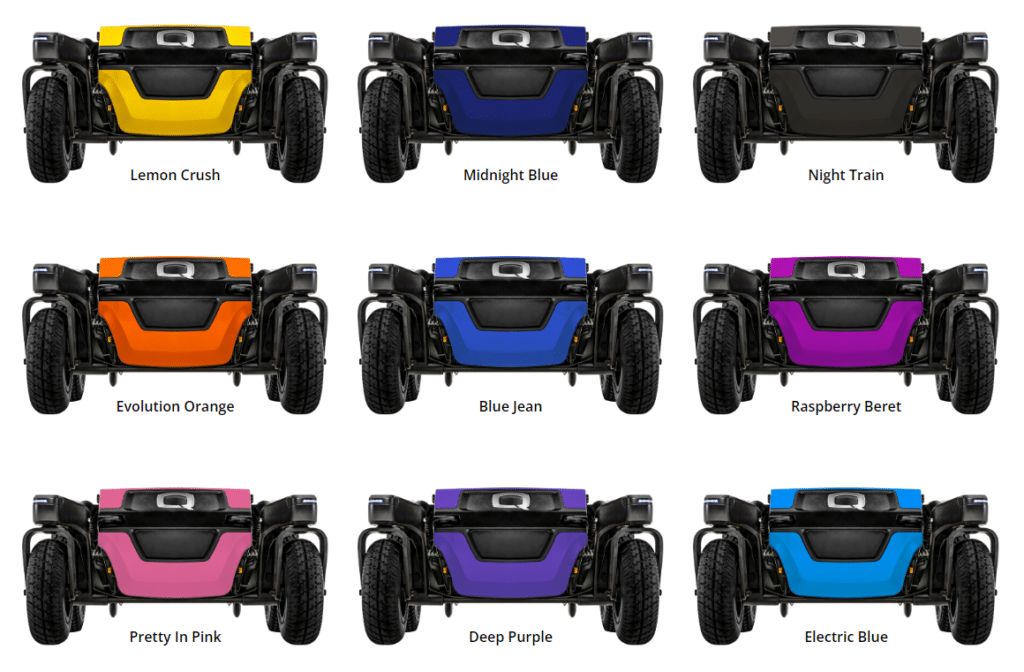

It comes standard with 4-pole motors, integrated switch lights, and 14 unique color options.

Download Brochure

This product is not available for purchase online.

Categories: , ,

Description

The latest Rear Wheel drive technology from Quantum

The new R-Trak has revolutionised the rear-wheel drive experience by including independent suspension on all four wheels with a compact size that improves manoeuvability.

The R-Trak includes standard features such as fender lights, a USB charger and colour coded wheels.

Built for everyday use, engineered to withstand outdoor obstacles, and designed to provide the most comfortable rear-wheel drive experience ever, the R-TRAK establishes a new standard in power mobility.

We offer a full assessment service as well as a free trial.
Please complete our online enquiry form and request an assessment.
Together we can tailor a solution that fits your unique needs and abilities.

Enquire Now

Specifications

Maximum Speed1 Up to 7 mph (11 km/h)
Up to 3.5 mph (5.6 km/h) with 10-in. lift
Ground Clearance2 3.97 in. (101 mm) at battery tray
Turning Radius2 25.7 in. (653 mm)
Overall Size2,6 Stowage Length: 34.8 in (884 mm) without front rigging
Length: 44.5 in. (1130 mm) with front riggings
Width: 24.2 in. (616 mm)
Drive Wheels 14 in. (356 mm), solid or pneumatic
Caster Wheels 9 in. (229 mm), solid or pneumatic
Anti-tip Wheels 4 in. (102 mm), flat free
Range1,4 Up to 16.34 miles (26.3 km) with Group 24 batteries
Component Weights5 Base: 128 lbs. (58 kg)
Batteries: Group 24: 51.5 lbs. (23.36 kg) each (standard)
Drivetrain Two motor, rear-wheel drive
Brakes Electronic regenerative, disc park brake
Batteries3 Two 12 volt, Flat top deep-cycle
Group 24: C20 75 Ah, C5 62 Ah
Battery Charger 8 amp, off-board
Freewheel Operational Force Less than 60 N
Drive Control Operational Force Less than 5 N
Maximum Rated Slope 7.5° (13.2%)
Maximum Obstacle Climbing Ability (Ascending and Descending) 2.36 in. (60 mm)
Measured Sound Level (A-weighted) Less than 65 dB

Request Demonstration

Product Enquiry

We offer a full assessment service as well as a free trial. Please complete our online enquiry form and request an assessment. Together we can tailor a solution that fits your unique needs and abilities.
