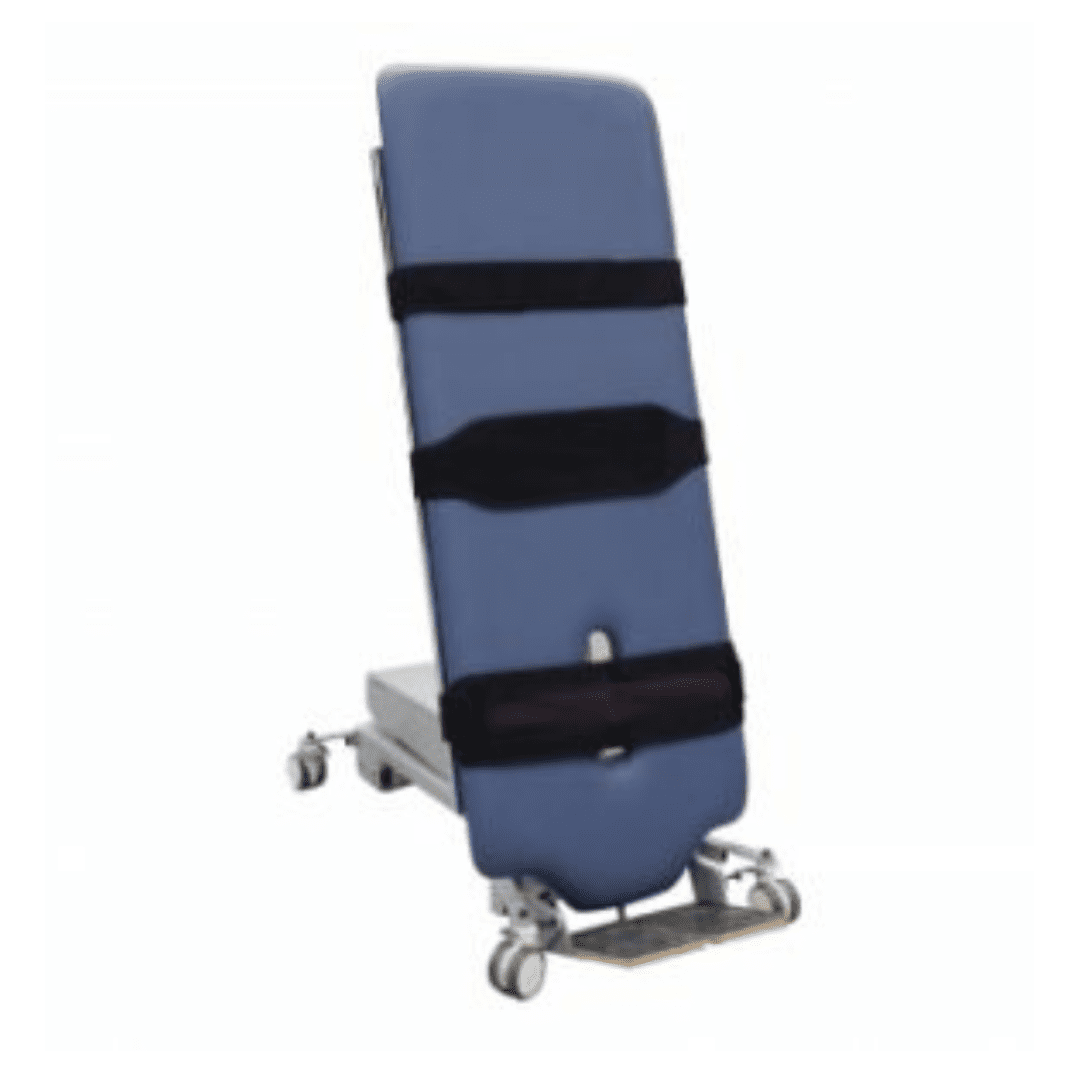

Single Action Tilt Table

This table has the functionality of the standard Dual Action Tilt Table other than the height adjustment which is set at 570mm and is more suitable where patients are ambulatory. As a bonus, with fewer moving parts the table structure has fewer places where hands or limbs could be crushed.

This product is not available for purchase online.

Categories: , ,

Description

The new Single Action Tilt Table is designed and manufactured in Australia with a 5 year warranty based on the popular Dual Action Tilt Table available since 1997.

The long cut-out in the leg area allows for individual strapping of the legs as required. A set of three patient straps is supplied as standard.

The table top tilts to 80deg and patients can safely walk on and off the table if appropriate taking advantage of the adjustable angle foot plate [ +/-30deg in 5deg steps]. Two angle indicators, one on either side of the table, are also a standard accessory.

Standard tilting capacity is 200kg although this can be optionally increased to 300kg+ with full range movement in approx 11 seconds

Standard configuration includes

    • Fixed Height 570mm
    • Tilting capacity 200kg
    • Fast or slow tilting speed with ‘soft-stops’
    • Hand control
    • Adjustable angle twin foot plate
    • Set of 3 patient straps
    • Tilt angle indicators on both sides of table
    • Battery back-up

There is no Australian GST payable on Tilt Tables.

Specifications

Couch Dimensions Main Section 1750mm long
Overall Length 1950mm
Width 710mm
Fixed height 570mm
Upholstery Angle adjustment Tilt Electric
Upholstery Fabric Vinyl – Medical grade heavy duty vinyl fabric. Formulated to inhibit hardening and breakdown of the PVC surface due to perspiration and oils. Light fast, fire retardant, sanitised and stain resistant.
Foam 38mm high density foam rolled over the edges of the strong plywood base covered with 12mm of soft foam for enhanced comfort while providing a full working width and extended life.
Colours Wedgewood. Other colours on request
Frame Materials Heavy steel plate and tube
Colour Light Grey
Wheel System 125mm braked castors [155mm clearance for hoists]
Tilt Adjustment Tilt operation Twin Linak brand European electric actuators
Control Hand control
Electrical Requirements Medically approved to AS 3200 / EN60601 – 1
Supply 230vAC ±10%, 50hz max 1.5amp
Operation 24vDC max 70VA
Weight 80kg
Shipping Dimensions 197 x 82 x 85cm / 95kg. Shrinkwrapped on a wooden pallet
ARTG No 123753
Warranty 5 years, parts only
