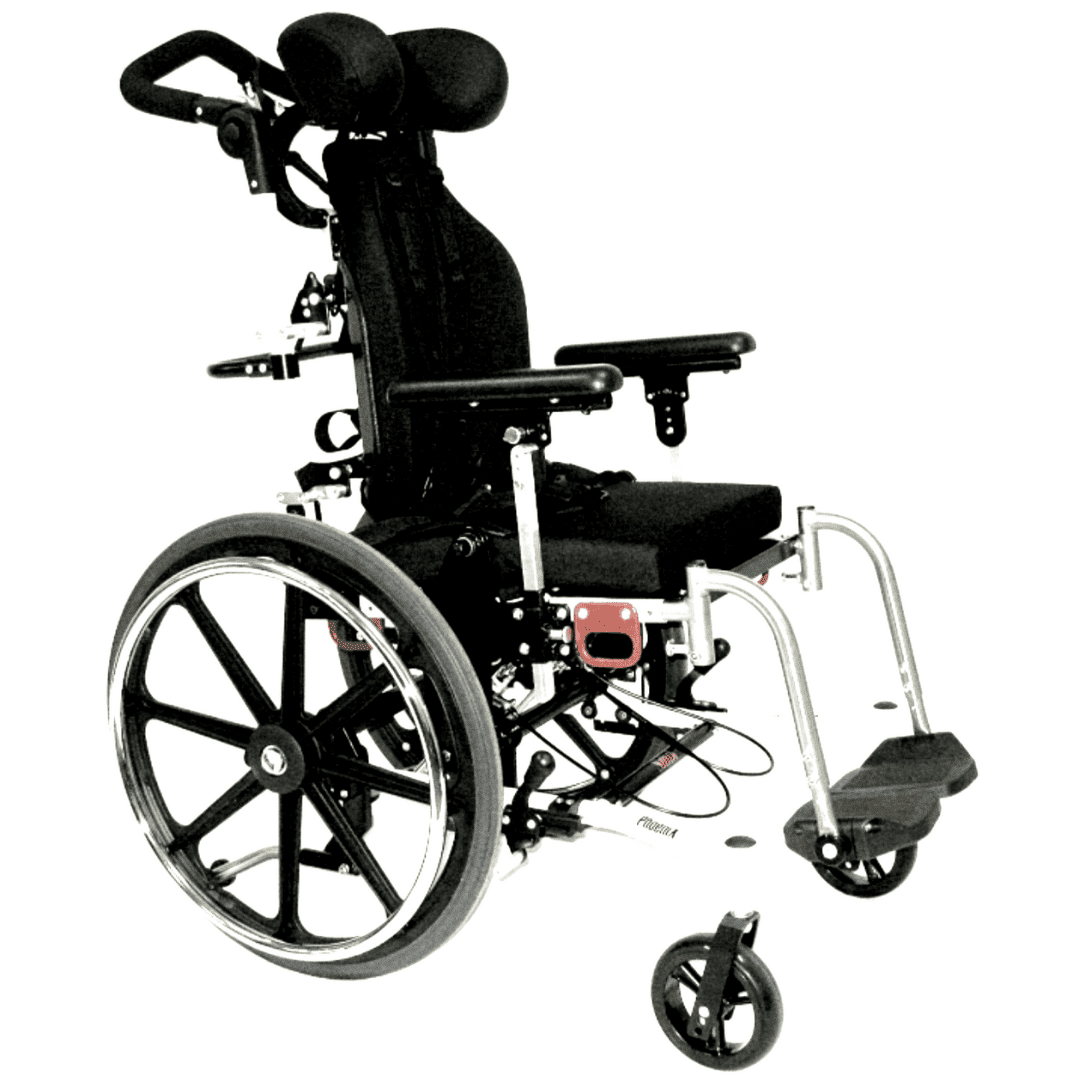

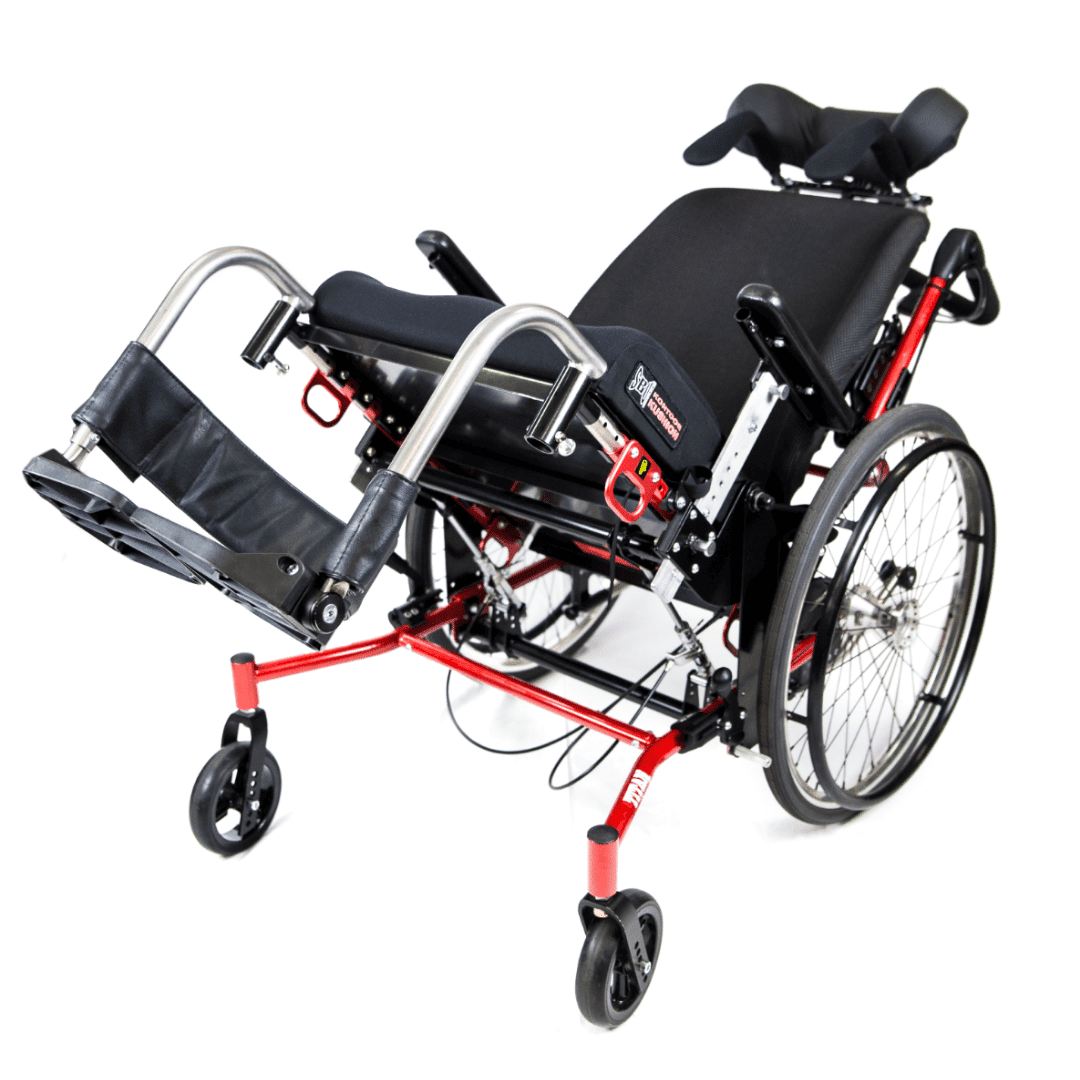

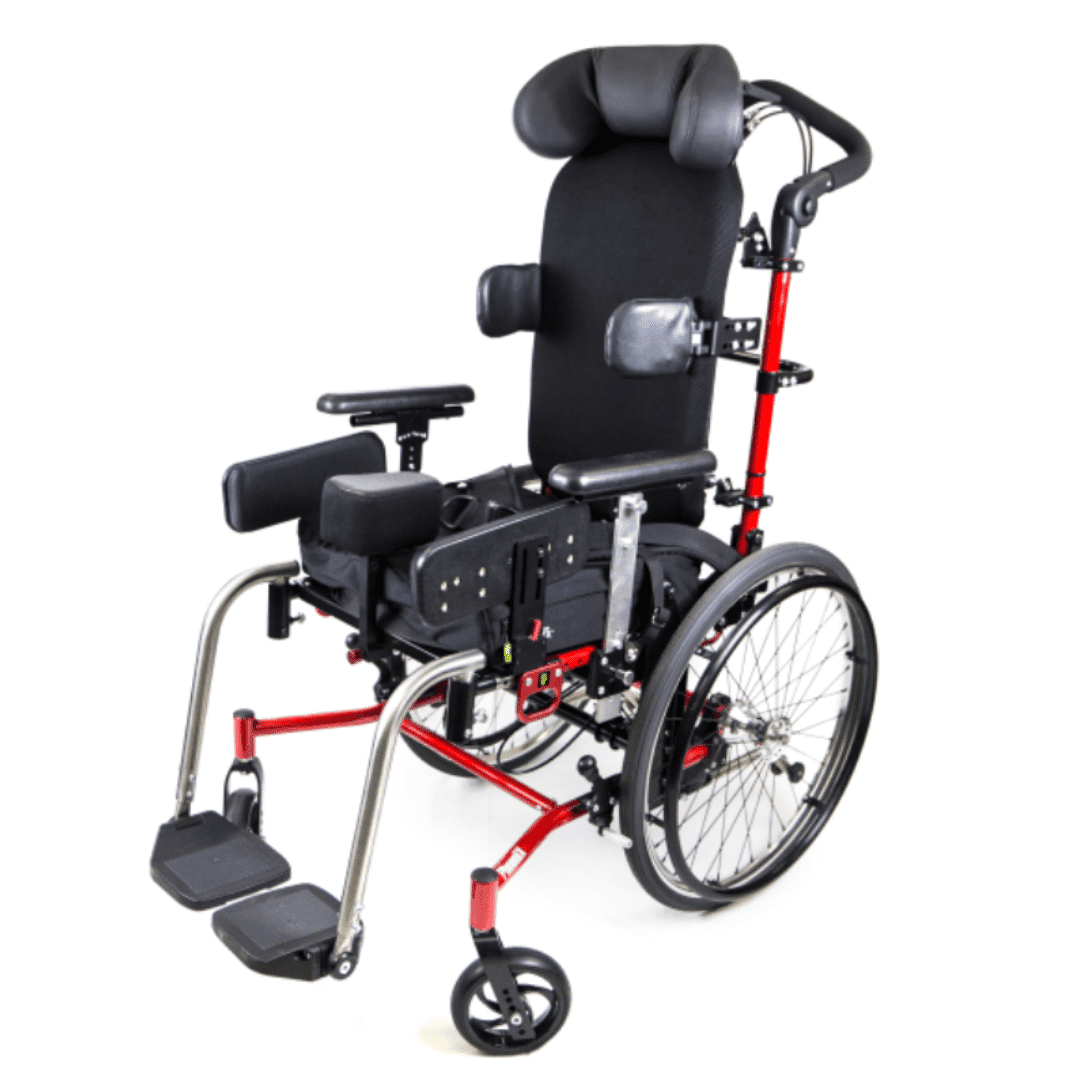

SMIK Phoenix Tilt In Space Wheelchair

The Phoenix Tilt In Space (TIS) represents our idea of what we feel is a practical, usable and value for money tilt-in-space wheelchair, designed and built in Australia for the Australian market.

The Phoenix TIS offers an unprecedented amount of tilt range and frame adjustment.  The wheelchair is available in seat widths ranging from 31 – 40 cm with a seat depth adjustment in excess of 10cm.   The Phoenix TIS is ideal for the younger generation who require the use of a wheelchair with a wide tilt range, but not the usual bulk and weight associated with current tilt chairs.

Download Brochure
Categories: , ,

The Smik Phoenix Tilt In Space (TIS) wheelchair represents our idea of what we feel is a practical, usable and value for money tilt-in-space wheelchair, designed and built in Australia for the Australian market.

The Phoenix TIS offers an unprecedented amount of tilt range and frame adjustment.  The wheelchair is available in seat widths ranging from 31 – 40 cm with a seat depth adjustment in excess of 10cm.

The Phoenix TIS is ideal for the younger generation who require the use of a wheelchair with a wide tilt range, but not the usual bulk and weight associated with current tilt chairs.

With the Phoenix TIS, we are confident we have a chair that will meets the needs of the Australian market.  Review our options list which includes front castor and rear wheel size  options, standard or braked rear wheels, armrests, skirt guards and seating requirements if  required.

The Smik Phoenix TIS is crash tested for its maximum user weight rating of 120 kg.

Smik wheelchairs are designed and custom built in Australia and comply with Australian Standards.

This product has been approved for MASS SOA 99/3/1 production.

We offer a full assessment service as well as a free trial.
Please complete our online enquiry form and request an assessment.
Together we can tailor a solution that fits your unique needs and abilities.

Enquire Now

Specifications

Wheelchair dimensions (rolling frame only)

Overall weight 26kg
Overall width 31cm – 51cm
Seat to 31-51cm seat 0 degree camber
Seat depth floor 48.5cm
Push handle growth range 10cm
Turning height 81cm – 115.5cm
Radius 63.5cm

Specifications include:

  • Fully Chro Moly hi-strength frame
  • Seat widths from 31cm – 41cm
  • Seat depth +10cm in 25mm increments
  • Extending aluminium seat pan
  • Braked 20″/22″/24″ rear wheels with solid tyres
  • Wide 6″ Lexan front castors
  • Adjustable tilt angle +10 degrees to -50 degrees available
  • Removable, swing away foot rigging

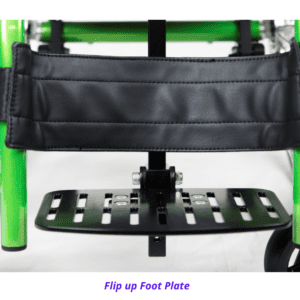

  • Angle adjustable flip up foot plates
  • Removable, height and angle adjustable armrests
  • Height adjustable backrest spreader bar

Request Demonstration

Product Enquiry

We offer a full assessment service as well as a free trial. Please complete our online enquiry form and request an assessment. Together we can tailor a solution that fits your unique needs and abilities.

Options

Options/Accessories

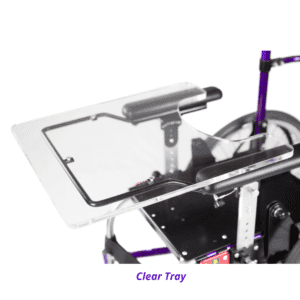

  • Custom tray with mounting hardware

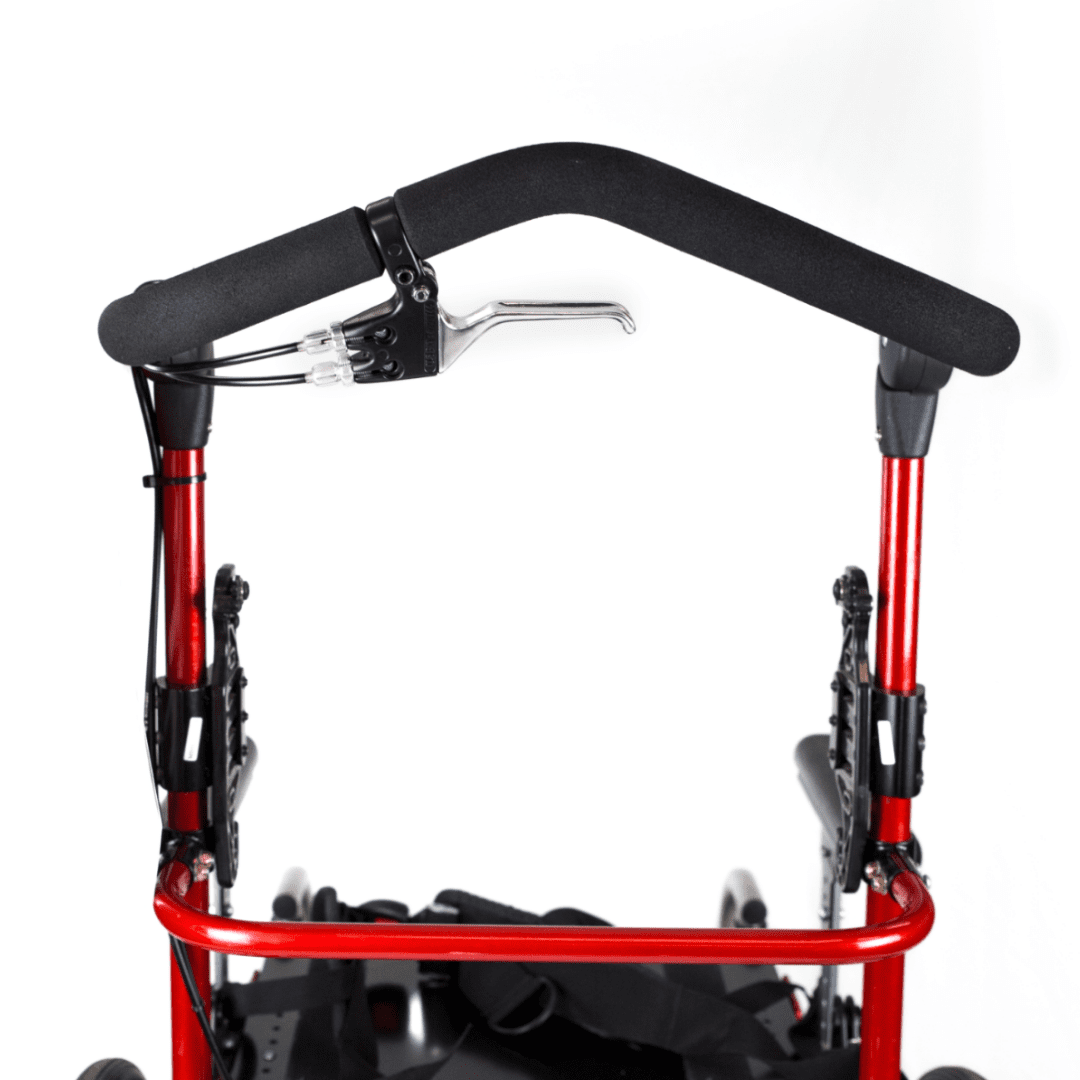

  • Height and angle adjustable push handle
  • Twin cable, single lever tilt release
  • Skirt guards – ABS or aluminium
  • 2 point seat belt
  • 4 point seat belt
  • Pelvi-Loc seat belt
  • Chest harness
  • SBU Komfort Kushion – Planar
  • SBU Komfort Kushion PR – Planar
  • SBU Kontoor Kushion – Contour
  • SBU Kontoor Kushion PR – Contour
  • SBU full adaptive seating service
  • SBU OUTBACK – Accessory Backrest (Regular/Tall/Thoracic/Deep)
  • SBU Thor Rasics – Lateral mounting hardware (to suit SBU OUTBACK)
  • SBU Abductor bracket – Swing-away
  • SBU Abductor pads
  • AEL Head supports – including mounting hardware

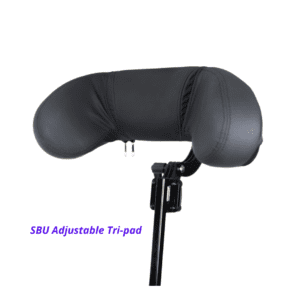

  • SBU Tri-pod head support – including mounting hardware
  • Pride Tru comfort head support – including mounting
  • Whitmyer head supports
  • Savant head supports
  • Axion rotation device

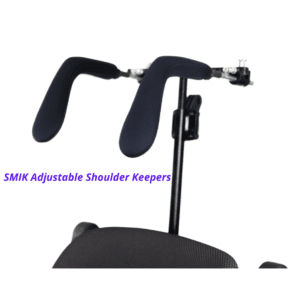

  • SBU Tear drop shoulder keepers
  • Foot plate – one piece

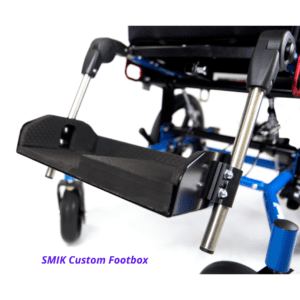

  • Foot box
  • Ankle supports
  • Foot positioners
  • Foot assist tilt lever
  • Spoke guards
  • Upper body harness strap guides
  • Spring loaded anti tippers
  • Foot brake
