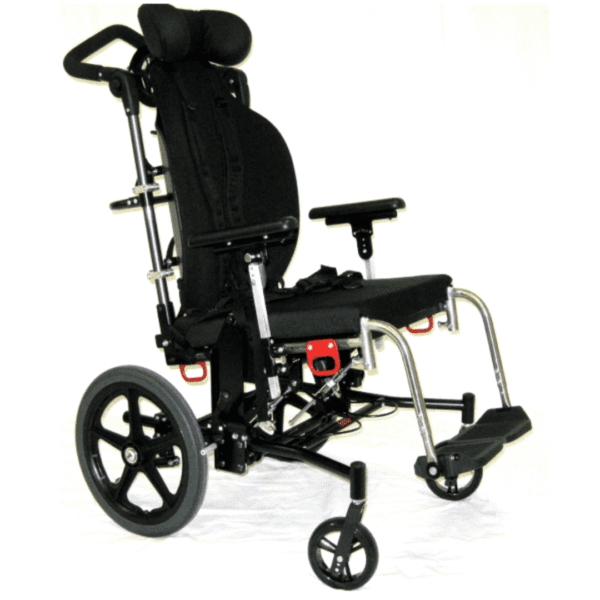

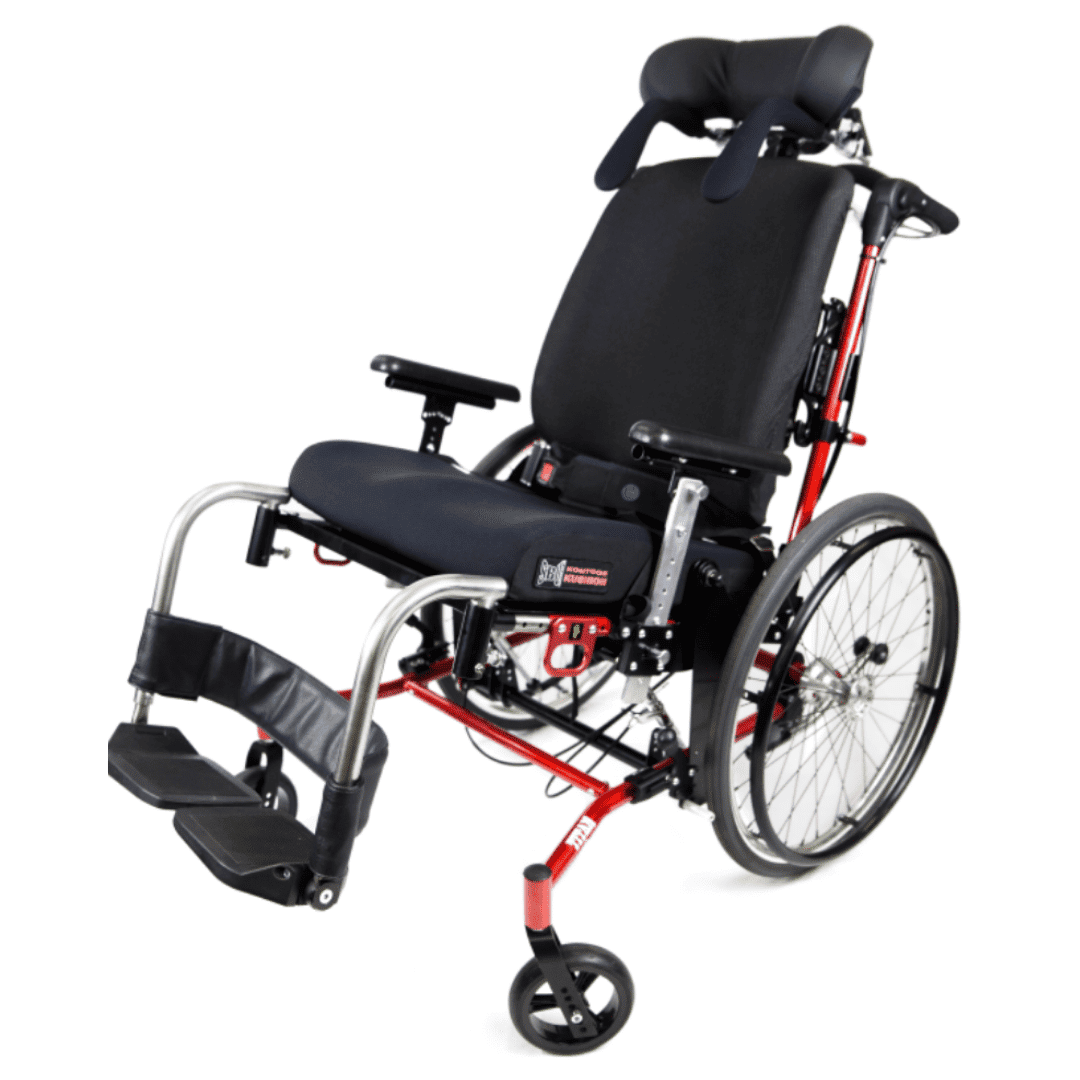

SMIK Titan Tilt In Space Wheelchair

The Smik Titan Tilt-In-Space represents our idea of what we feel is a practical, usable and value for money tilt-in-space wheelchair, designed and built in Australia for the Australian market.

The Smik Titan offers an unprecedented amount of tilt range and frame adjustment.  The wheelchair is available in seat widths ranging from 12″ to 20″ W (31 – 51 cm) with a seat depth adjustment in excess of 10cm.   The Smik Titan is ideal for a wide range of people who require the use of a wheelchair with a wide tilt range, but not the usual bulk and weight associated with current tilt chairs.

Download Brochure
Categories: , ,

The Smik Titan is built locally in our workshop and can be customised to suit each individuals needs. Please review our options list which includes standard or braked rear wheels, armrests, skirt guards and seating requirements if  required.

The Smik Titan is crash tested for its maximum user weight rating of 120 kg.

Smik wheelchairs are designed and custom built in Australia and comply with Australian Standards.

We offer a full assessment service as well as a free trial.
Please complete our online enquiry form and request an assessment.
Together we can tailor a solution that fits your unique needs and abilities.

Enquire Now

Specifications

Rear wheels                          16” solid tyre
16” pneumatic tyre
Camber                                  0°
Castors                                   6” wide soft roll
Seat width                             31– 50cm
Seat depth                             31 – 55cm + 10cm growth
Seat to floor height              46cms
Rear axle position               Adjustable
Backrest height                    Nominate
Push handle                          Angle adjustable stroller
Foot plates                            Height & angle adjustable, flip-up
Parking brake                       push to lock
Turning radius                     66cm
Overall size Length             92.5-102.5cm
(70° leg rests) Width –       59 – 69cm
Push handle height            82.5 – 122cm
Anti-tip                                 Spring loaded flip-up
Gross weight                       Frame only – 25kg including wheels
Seating                                 Prescription
Max user weight *              120kg

Fully Chro Moly hi-strength frameSpecifications include:

  • Seat depth +10cm in 25mm increments
  • Extending aluminium seat pan
  • Wide 6″ Lexan front castors

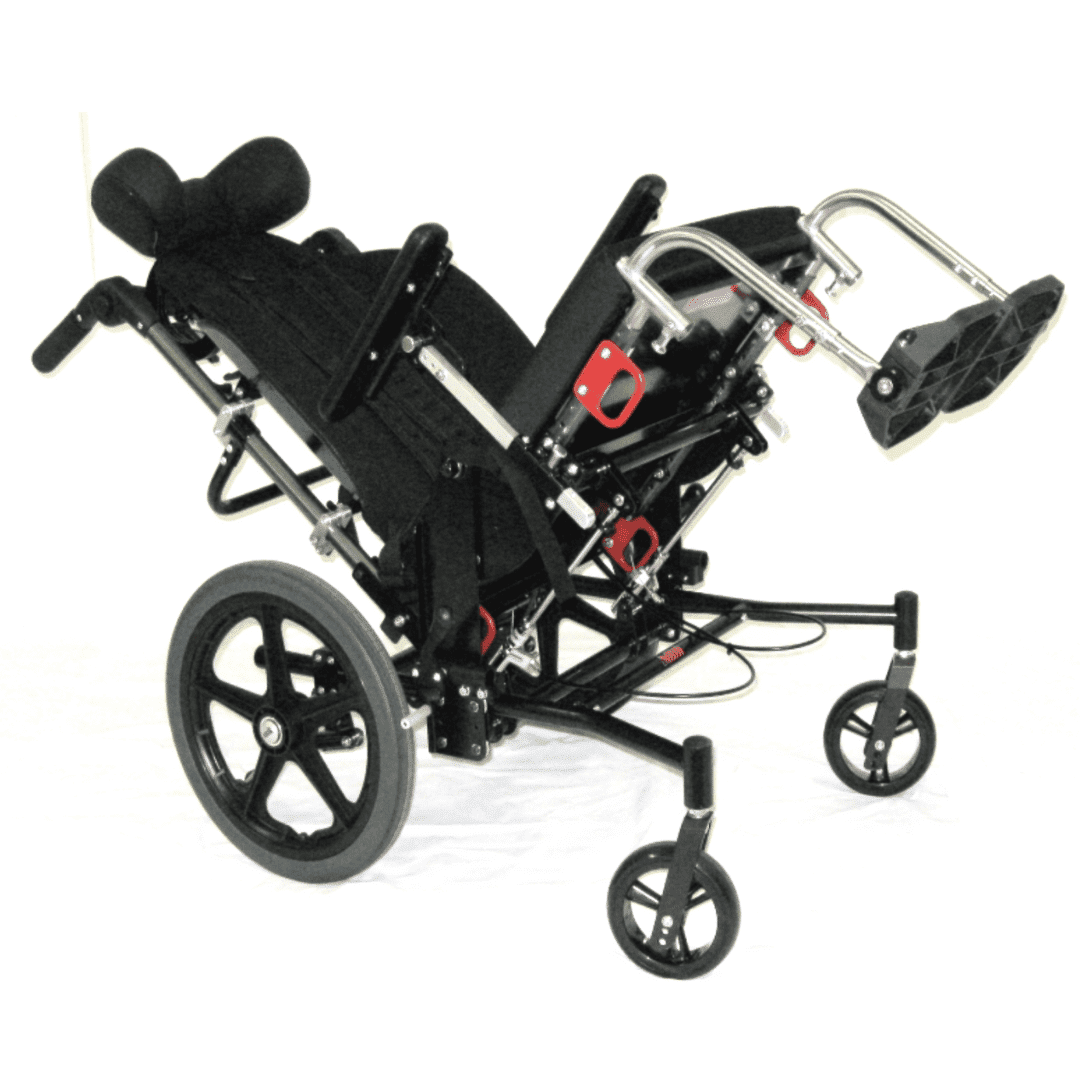

  • Adjustable tilt angle +10 degrees to -50 degrees available
  • Removable, swing away foot rigging
  • Angle adjustable flip up foot plates
  • Removable, height and angle adjustable armrests
  • Height adjustable backrest spreader bar

Request Demonstration

Product Enquiry

We offer a full assessment service as well as a free trial. Please complete our online enquiry form and request an assessment. Together we can tailor a solution that fits your unique needs and abilities.

Options

Options/Accessories

  • Custom tray with mounting hardware
  • Height and angle adjustable push handle
  • Twin cable, single lever tilt release
  • Skirt guards – ABS or aluminium
  • 2 point seat belt
  • 4 point seat belt
  • Pelvi-Loc seat belt
  • Chest harness
  • SBU Komfort Kushion – Planar
  • SBU Komfort Kushion PR – Planar
  • SBU Kontoor Kushion – Contour
  • SBU Kontoor Kushion PR – Contour
  • SBU full adaptive seating service
  • SBU OUTBACK – Accessory Backrest (Regular/Tall/Thoracic/Deep)
  • SBU Thor Rasics – Lateral mounting hardware (to suit SBU OUTBACK)
  • SBU Abductor bracket – Swing-away
  • SBU Abductor pads
  • AEL Head supports – including mounting hardware
  • SBU Tri-pod head support – including mounting hardware
  • Pride Tru comfort head support – including mounting
  • Whitmyer head supports
  • Savant head supports
  • Axion rotation device
  • SBU Tear drop shoulder keepers
  • Foot plate – one piece
  • Foot box
  • Ankle supports
  • Foot positioners
  • Foot assist tilt lever
  • Spoke guards
  • Upper body harness strap guides
