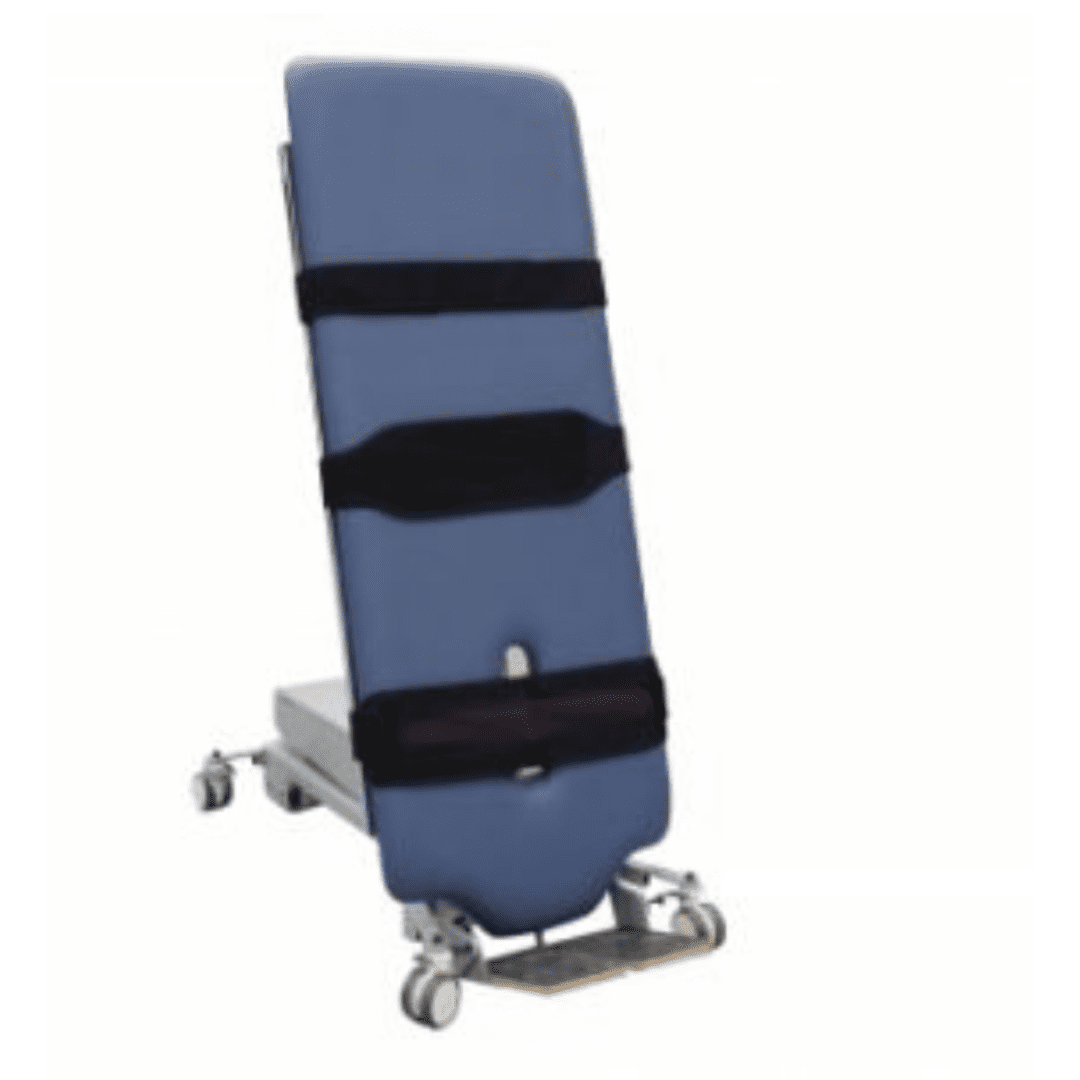

Dual Action Tilt Table

By using a twin column lift this Tilt Table is able to achieve a more powerful lifting function without lengthwise movement during height adjustment. As a bonus, with fewer moving parts the table structure has fewer places where hands or limbs could be crushed.

This product is not available for purchase online.

Categories: , ,


It was developed to permit easy transfers to the tilt table independently, from a wheel chair, bed or with a hoist [there is 155mm clearance below the frame for hoist clearance]. Carers can adjust the working height to the best level for them [up to 990 or 750mm depending on the height range chosen] using the hand control.

The long cut-out in the leg area allows for individual strapping of the legs as required. A set of three patient straps is supplied as standard.

The table top tilts to 80 deg and patients can safely walk on and off the table if appropriate taking advantage of the adjustable angle foot plate [ +/-30 deg in 5 deg steps]. Two angle indicators, one on either side of the table, are also a standard accessory.

Lifting capacity is 350kg

Standard configuration includes:

    • Height range 570 – 970mm
    • Tilting capacity 200kg
    • Fast or slow tilting speed with ‘soft-stops’
    • Hand control
    • Adjustable angle twin foot plate
    • Set of 3 patient straps
    • Tilt angle indicators on both sides of table
    • Battery back-up

There is no Australian GST payable on Tilt Tables.

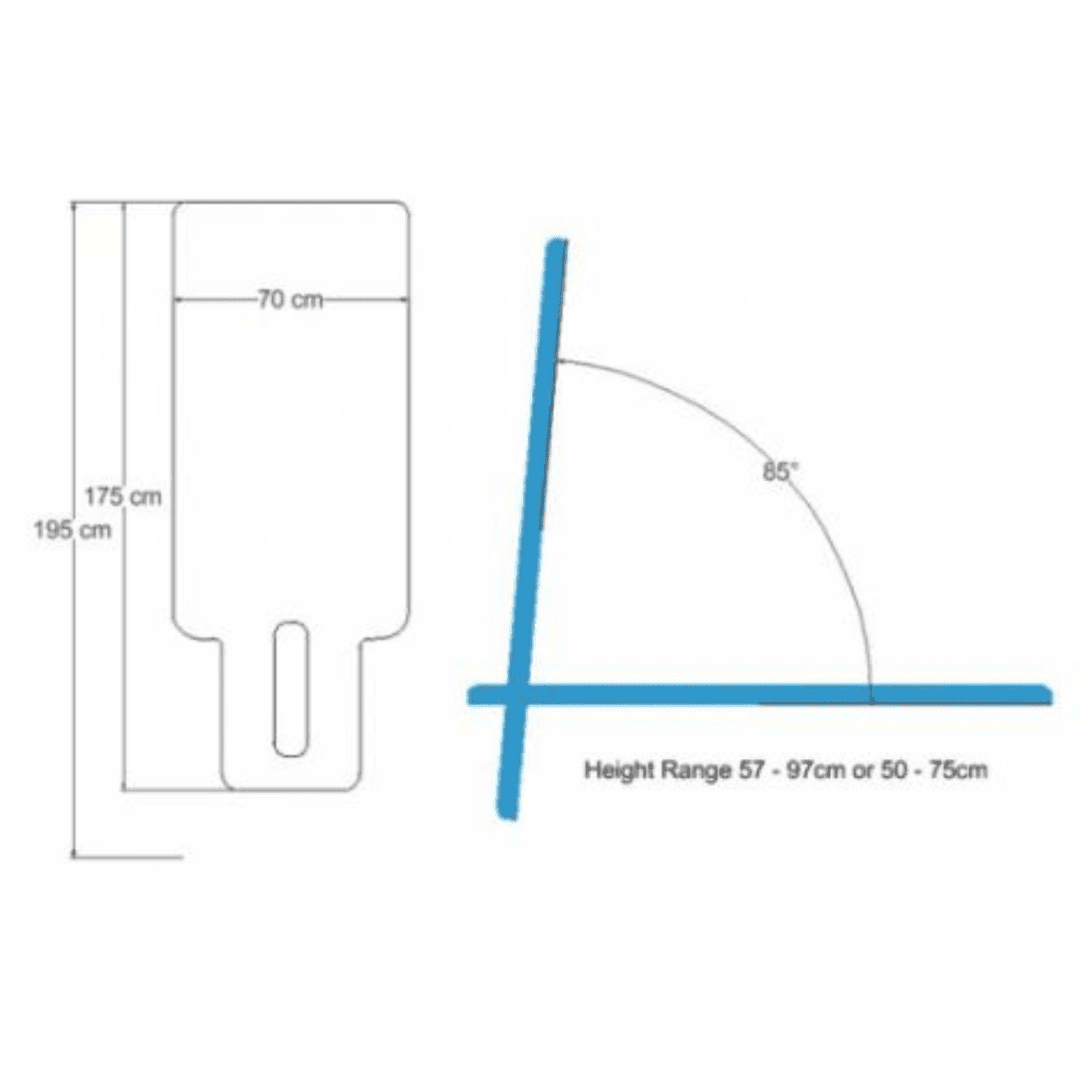

Couch Dimensions Main Section 1750mm long
Overall Length 1950mm
Width 710mm
Upholstery Angle adjustment Tilt Twin Electric actuators
Upholstery Fabric Vinyl – Medical grade heavy duty vinyl fabric. Formulated to inhibit hardening and breakdown of the PVC surface due to perspiration and oils. Light fast, fire retardant, sanitised and stain resistant.
Foam 38mm high density foam rolled over the edges of the strong plywood base covered with 12mm of soft foam for enhanced comfort while providing a full working width and extended life.
Colours Wedgewood. Other colours on request
Frame Materials Heavy steel plate and tube
Colour Light Grey
Wheel System 125mm braked castors [155mm clearance for hoists]
Height adjustment Range 570 –  970mm [optionally 500 – 750mm]
Lift mechanism Vertical lift with no lengthwise movement
Lift operation Twin Linak brand European electric columns
Control Hand control
Electrical Requirements Medically approved to AS 3200 / EN60601 – 1
Supply 230vAC °10%, 50hz max 3.0amp
Operation 24vDC max 70VA
Battery back-up
Lifting Capacity 350kg Dynamic / 700kg Static
Tilting capacity 200kg
Weight 90kg
Shipping Dimensions 197 x 82 x 60cm / 95kg. Shrinkwrapped on a wooden pallet
ARTG No 123753
Warranty 5 years, parts only
