Description

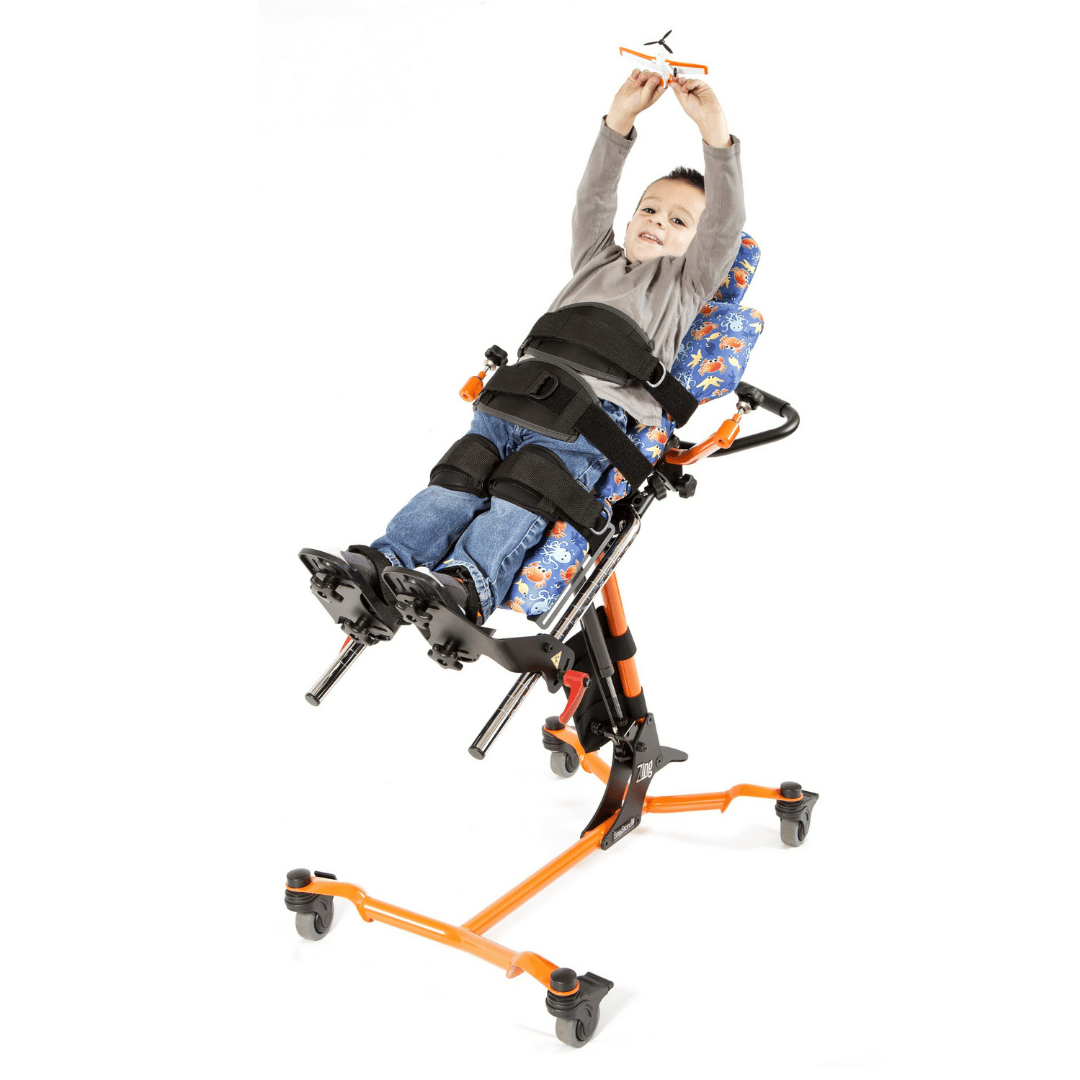

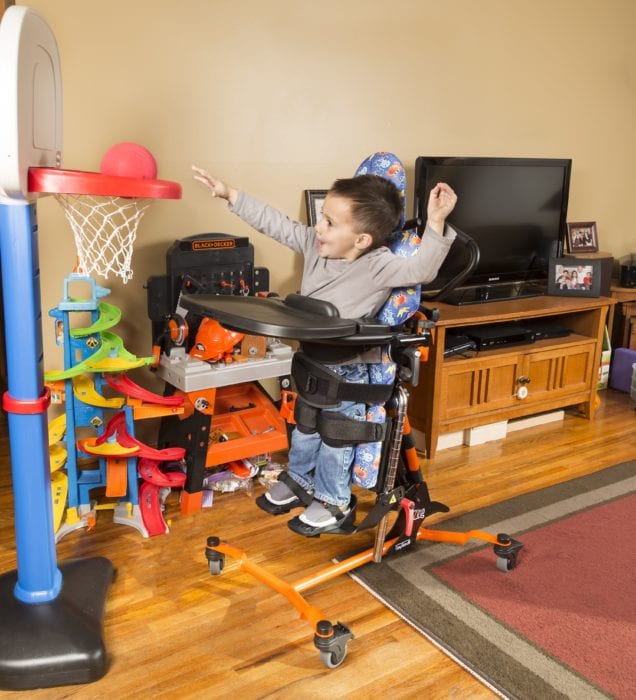

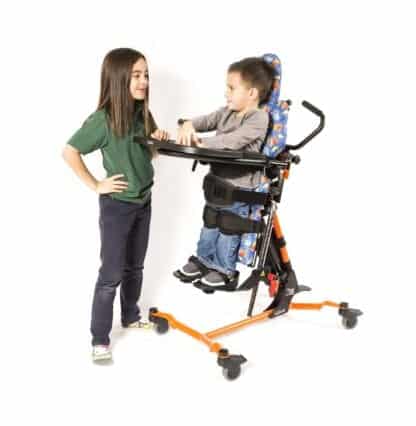

The Zing MPS TT Size 1 provides a new therapeutic opportunity to stand in supine, upright and prone without having to transfer the child in and out of the stander to switch between supine or prone standing.

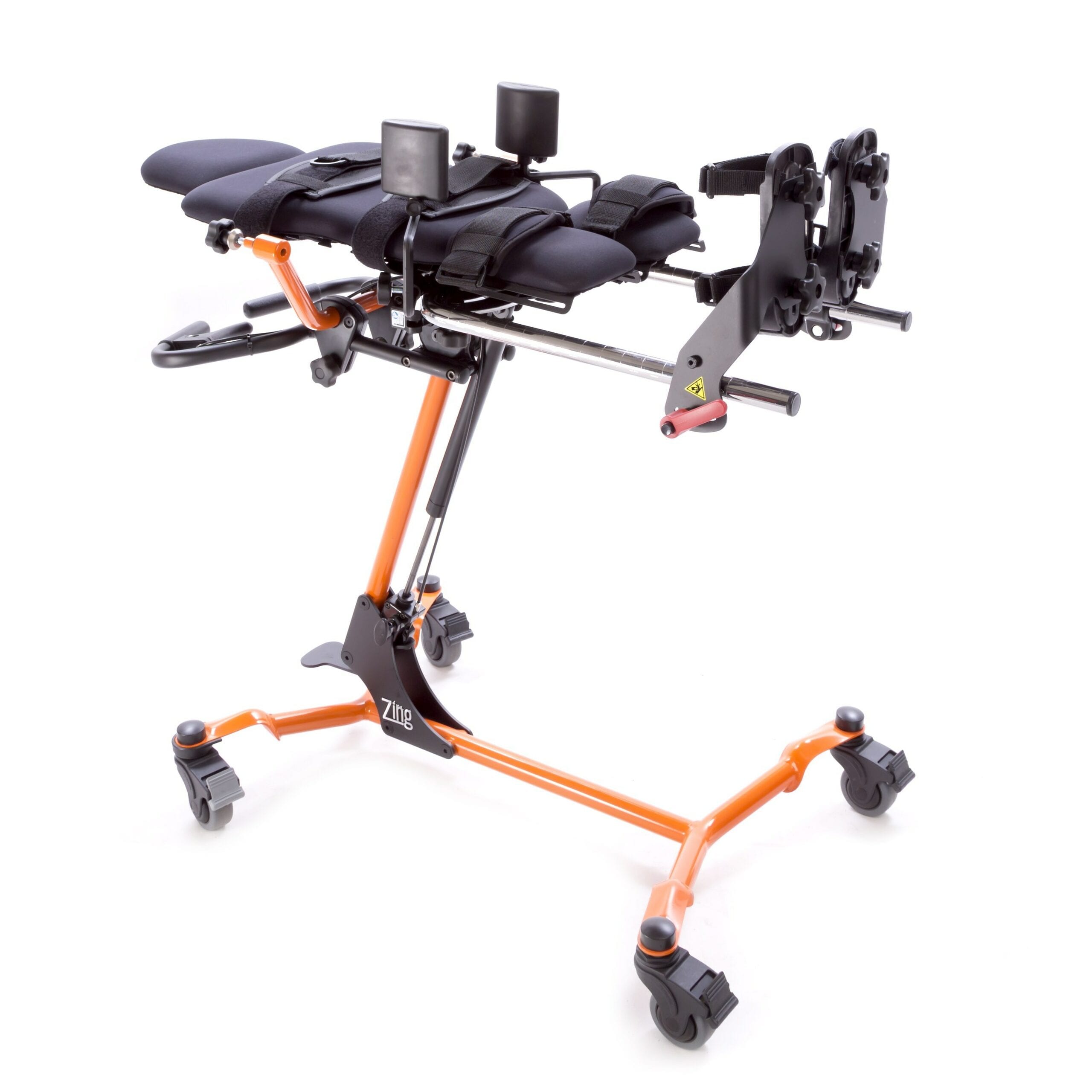

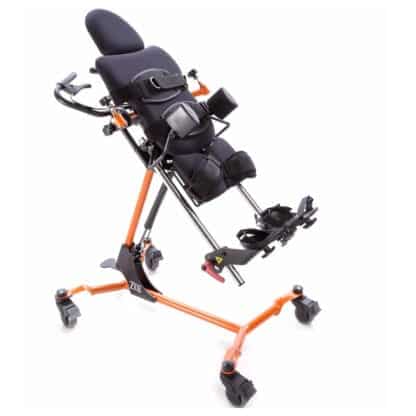

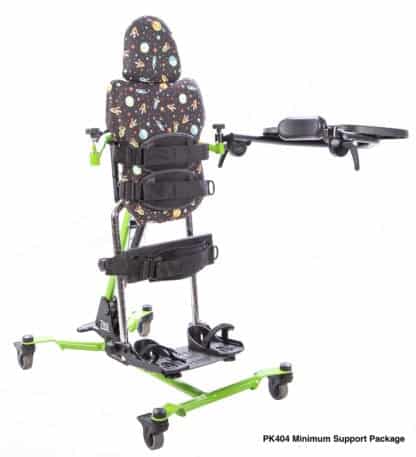

No need to flip pads, foot plates and trays to change positions. Tool-free adjustments and/or removal of support and positioning components adds to the ease of use. The TT versions, or tilt-table style standers, feature a longer, wider single pad that provides both pelvic and back support. It also has available padded strapping for those who do not require maximum positioning support, but individual support and positioning components can be added wherever additional support is needed.

With over 70 support and positioning components/accessories, it can be configured as a simple stander or fit a child with more complex needs. The support and positioning components available (independent and multi-adjustable foot plates, knee pads, calf pads and floating hip guides) make the Zing MPS TT one of the few multi-position standers that can accommodate contractures on one or both sides.

There are two Sizes (Size 1 and 2) and six models in the EasyStand Zing range:

Zing MPS
Zing MPS Tilt Table
Zing Supine
Zing Supine Tilt Table
Zing Vertical
Zing Prone

We offer a full assessment service as well as a free trial.
Please complete our online enquiry form and request an assessment.
Together we can tailor a solution that fits your unique needs and abilities.

Enquire Now

Specifications

Basic Unit	Imperial	Metric
Height range	up to 44”	up to 112 cm
Weight limit	70 lbs.	32 kg
Transfer height (horizontal position)	32”	81 cm
Centre of pelvic support to footplate range, may invert footplates as necessary	7″ – 22”	18 cm- 56 cm
Upper body support height range	4”	10 cm
Kneepad depth range	5”	13 cm
Kneepad inside width	2.5”, 3.25”, 4.25″, 5″	6cm, 8cm, 11cm, 13cm
Kneepad dimensions
2.5	3.5”x4”	9 x 10 cm
3.25	4”x4”	10 x 10 cm
4.25	4.5”x5”	11 x 13 cm
5.00	5”x6”	13 x 15 cm
Multi-adjustable knee pads width range, centre-to-centre
2.5	4”- 9”	10 – 23 cm
3.25	4.5”- 9”	11 – 23 cm
4.25	5” – 8”	13 – 20 cm
5.00	6” – 7”	15 – 18 cm
Multi-adjustable knee pads height range	+/- 0.75”	2 cm
Weight of basic unit	55 lbs.	25 kg
Frame footprint, caster-to-caster	20” x 28”	51 x 71cm
Maximum dimensions	21.5 x 29.5	55 x 75cm
Upholstery	Black nylon/neoprene or molded urethane
Hygienic covers	Polyurethane laminate ECO-PUL
Frame colour	Green, purple, orange, or white
Casters and wheels	3’’ diameter	8cm diameter
Lifting mechanisms available	Gas spring
Lift options	Dual control (hand lever) lockout knob
Options and Accessories
Supine positioning/Prone-Forward positioning. Supine, MPS, TT	Supine 0-90 degrees/Prone 0-20 degrees
Positioning, Prone model	90 (vertical) to 0 (horizontal)
Positioning, Vertical model	90 (vertical) only. Fixed position.
Leg abduction	30 degrees per side
Foot straps extra small – length over arch	8”	20 cm
	10”	25 cm
Secure foot straps – length over arch	Available in same lengths as regular foot straps
Footplate options LxW	6.00” L x 3.00” W	15 cm L x 8 cm W
	7.75” L x 3.25” W	20 cm L x 9 cm W
	9.75” L x 4” W	25 cm L x 11 cm W
Footplate, platform style	8”L x 12.00” W	20 cm L x 30 cm W
Multi-adjustable footplates – plantar/dorsi	+/- 20 degrees	+/- 20 degrees
Multi-adjustable footplates – fore/aft	+/- 0.75”	+/- 2 cm
Multi-adjustable footplates rotation	30 degrees left/right	30 degrees left/right
Single calf pad/leg rest	4” x 13.5”	10 x 34 cm
Single calf pad strap, fits circumference	24”	61 cm
Calf (behind knee) pad option, extra small pad size, small pad size, fore/aft adjustment from seat plane	3.5 x 3.5 inches, 4.5 x 4.5 inches, -1 to +4 inches	9 x 9 cm 11.5 x 11.5 cm -2.5 to +10 cm
Independent planar leg (calf) support tilt table (TT) Pads – 3 sizes	4” x 6”, 6” x 6”, 8” x 6”	10 x 15 cm 15 x 15 cm 20 x 15 cm
Independent planar leg (calf) support tilt table (TT) pad strap – Fits circumference:	Up to 15”	38 cm
Table mount and tray options/specs	Posterior Support Models (Supine, MPS, TT)
Shadow tray size – molded/acrylic	11”x19”	28 cm x 48 cm
Shadow tray height range	3”	8 cm
Shadow tray fore/aft range (from posterior pad to chest pad)	0” – 10”	0–25 cm
Swing away tray size – molded/acrylic	11”x19”	28 cm x 48 cm
Swing away tray height range	3”	8 cm
Swing away tray fore/aft range (from posterior pad to chest pad)	4”- 9”	10 to 23 cm
Swing away tray angle adjust range	+40 degree inclines to -90 degrees (parallel to user when standing or in supine mode)
Upholstery/Positioning Options/Specs
Hip support pad size	3.5”H x 3.5”W	9cm x 9cm
Hip supports width range	6” – 10”	15-25 cm

Lateral support pad size	3.5”H x 3.5”W	9cm x 9cm
Lateral supports width range – 2 sizes	4” to 8” 7” – 11”	10 to 20 18-28 cm
Lateral supports height range	3.5”	9 cm
Lateral supports fore/aft range	1”	3 cm
Pelvic support planar (2 sizes) all configurations	5×7” 5×9”	13cm x 18cm 13cm x 23cm
Pelvic support, form-to-fit (2 sizes) fosterior support (Supine, MPS, TT)	5″x7”, 5″x9”	13cm x 18cm 13cm x 23cm
Pelvic support form-to-fit (2 sizes) anterior support (Prone and Vertical)	5″x10”, 5″x12”	13cm x 25cm 13cm x 30cm
Upper body support planar	5″x5” (Anterior only), 5”x7”, 5”x9”, 7″x7”, 7″x9”	13cm x 13cm 13cm x 18cm 13cm x 23cm 18 x 18 cm 18 x 23 cm
Upper body support form-to-fit	5”H x 10”W, 5”H x 12”W, 7”H x 10”W, 7”H x 12”W	13cm x 25cm 13cm x 30cm 18cm x 25cm 18cm x 30cm
Upper body/pelvic tilt table (TT) pads – 3 sizes	14”L x 14”W 16”L x 14”W 18”L x 14”W	36 x 36 cm 41 x 36 cm 46 x 36 cm
Chest pad	3”Hx8”W	8cm x 20cm
Chest strap (pad size)	5″Hx8”W	13 x 20 cm
Chest strap (approximate user circumference)	Up to approx. 24”	Up to approx. 61 cm
Chest vest – X-style	9.5”Lx9”W	24 x 23 cm
Chest vest – X-style	11”Lx9.5”W	28 x 24 cm
Posterior Head Supports (Supine, MPS, TT)
Head support height range. (From top of upper body pad)	8”	20 cm
Head support depth range – from backrest	-2.5” to +1.5”	-6 to +4 cm
Head support size extra-small	5” H x 8” W cushion	13 cm H x 20 cm W
Head support size small	6” H x 10” W cushion	15 cm H x 25 cm W
Flat headrest	5” H x 7” W	13cm x 18cm
Form-to-fit head support – height, width, variable up to approximately:	5”, 10”	13 cm 25 cm
TT planar head support	8” H x 8.5” W	20 cm H x 22 cm W
Anterior Head Supports (Prone, Vertical)
Face aperture	2 – 3 x 9” pads	8cm x 23cm
Positioning belt – hip circumference	Up to approx.. 24”	Up to approx.. 61 cm
Configurations Available:
Supine	Posterior support pads
MPS (Multi-positional Stander, w/Prone Forward)
TT (Tilt Table, larger upholstery surfaces)
Prone	Anterior support pads
Vertical (fixed position, no lift options available)
