Ottobock B Series Power Wheelchair

The B Series – For more independence and flexibility

The modular design of the B Series family offers almost boundless possibilities for assembling custom-made devices, from the basic model to the high-end version.

Download Brochure

This product is not available for purchase online.

Categories: , , , , Tags: , , ,

Description

The B series range from Ottobock provides the flexability & performance required for the most demanding user.

Versatile, modular, and reliable, B Series wheelchairs were developed in collaboration with users and therapists, and designed to be tailored to a variety of lifestyles, budget, and mobility needs. With a B Series customised just for you, you’ll know you can stay focused on one thing: staying in the moment, all day, every day.

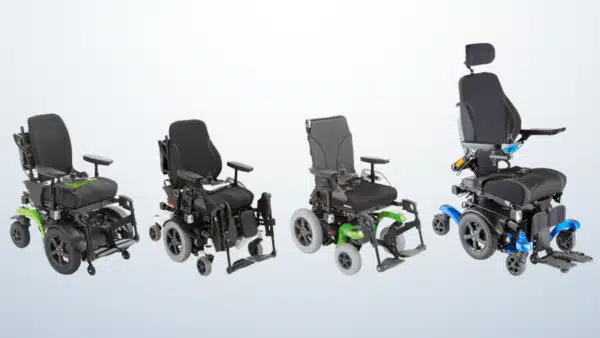

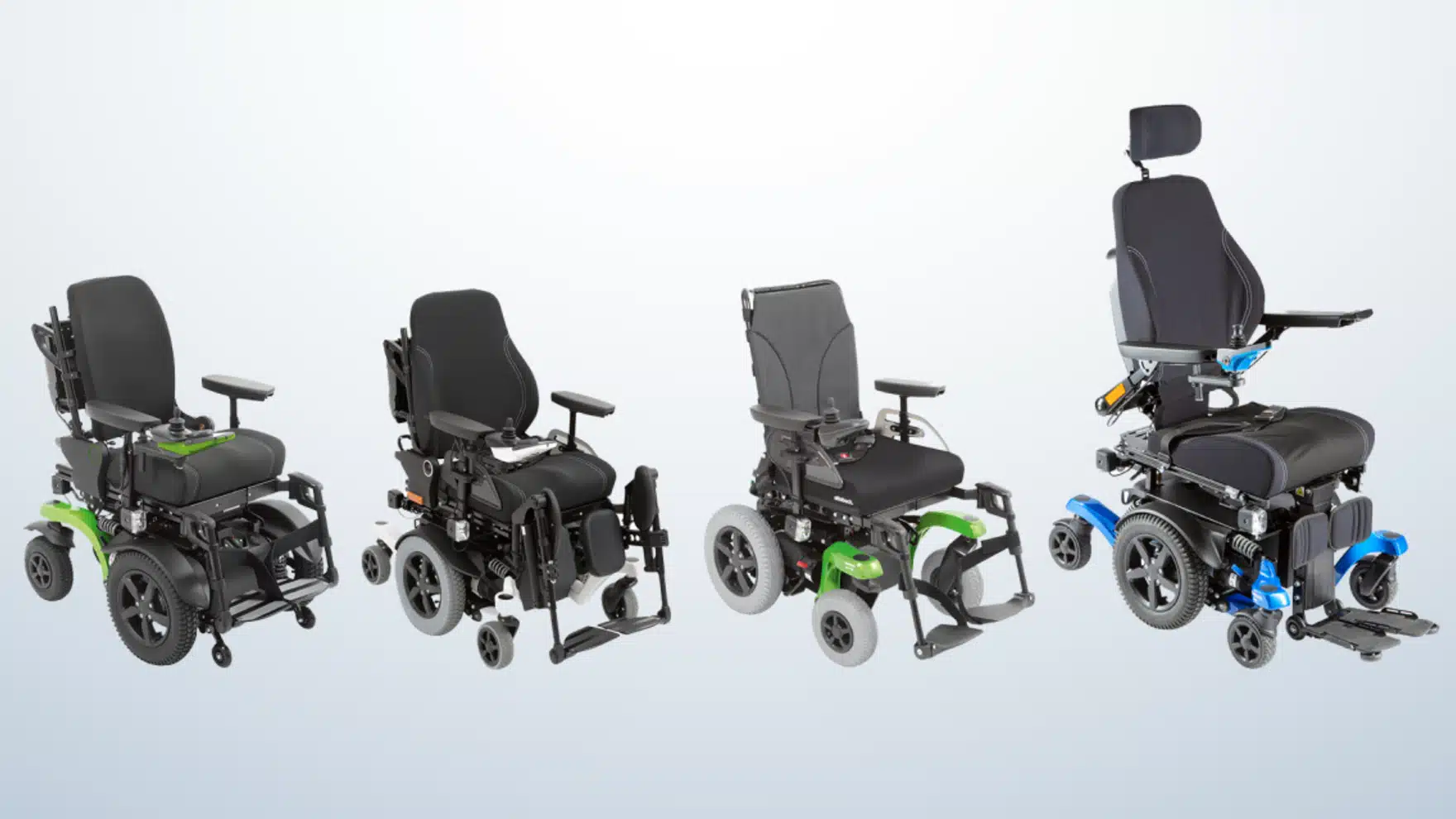

Three main configurations available:

B4 – Rear Wheel Drive Power chair. A compact design with multiple options available to support most day-to-day needs, ideal for navigating tight spaces.

B5/B6 – All-round performance from this flexible and modular wheelchair. A wide range of seat settings, positioning features and control options available. Also can be configured in front, mid or rear-wheel drive to suit the users needs.

B7 – with its advanced powerseat can achieve unrivaled personalisation for exceptional all-day comfort.

We offer a full assessment service as well as a free trial.
Please complete our online enquiry form and request an assessment.
Together we can tailor a solution that fits your unique needs and abilities.

Enquire Now

Specifications

Technical Data

Speeds 6/7.2/10 kmph
Battery capacity 53 Ah (C5) for B5

63 Ah (C5) for B6
Range (acc. to ISO 7176-4) 35 km
Control unit VR2 or Ottobock TEN°
Max. load capacity Chassis size 1: 140 kg

Chassis size 2: 160 kg
Obstacle negotiation capability Front-wheel drive: 100 mm

Rear-wheel drive 65 mm, optional 100 mm
Climbing ability (ISO 7176-2) 10°/17%
Overall width Chassis size 1: 600 mm

Chassis size 2: 640 mm
Seat height (depending on seating solution) 400-550 mm
Seat width 340-560 mm
Seat depth 340-500 mm
Back angle 0° to +30°

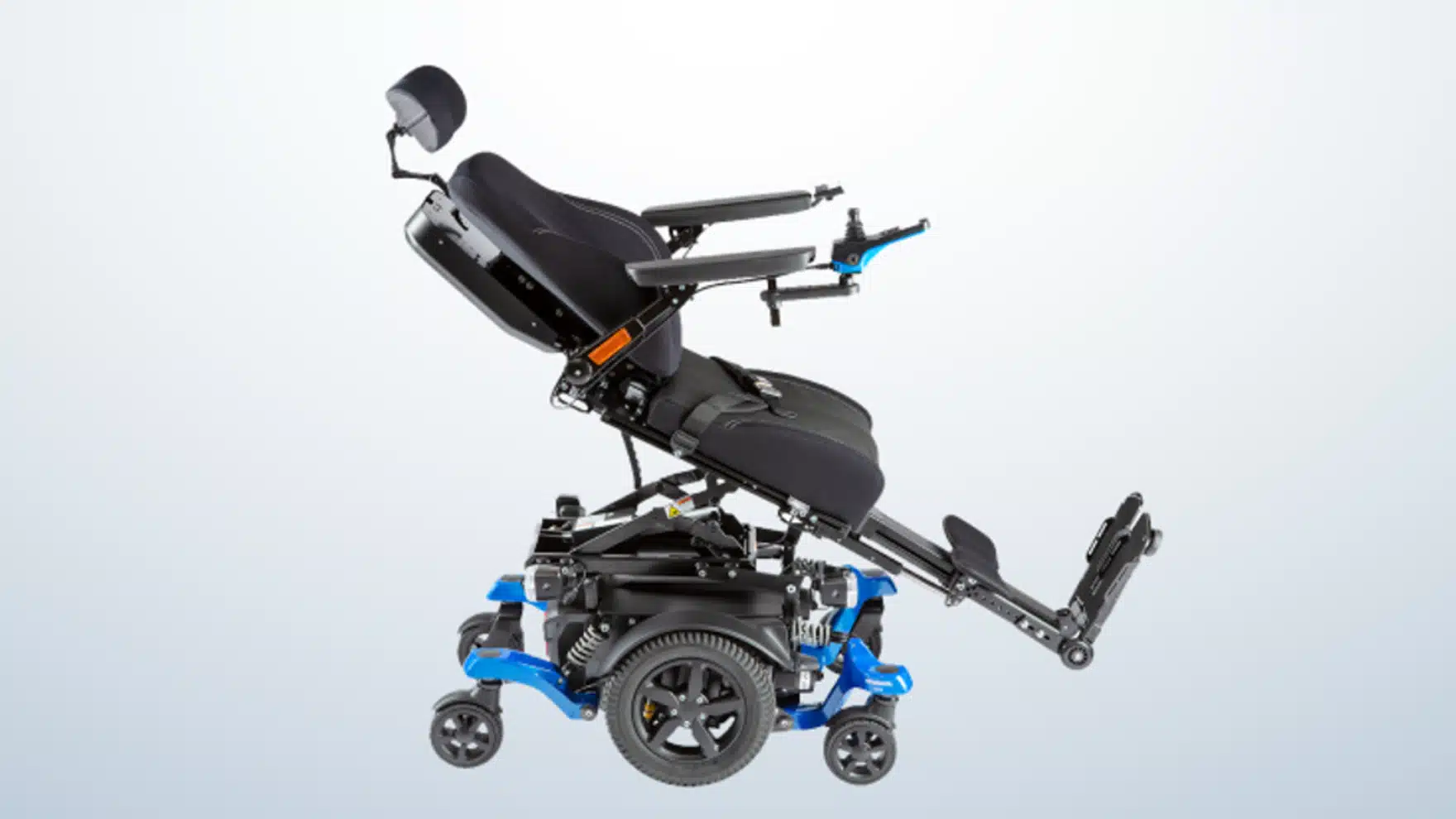

Seat tilt 45° power
Seat inclination -3° / 0° / 3° / 6°
Back height 450 / 550 mm
Arm support height 225-350 mm
Lower leg length 250-540 mm
Max. charging time 12 hours
Weight from 107 kg



Request Demonstration

Product Enquiry

We offer a full assessment service as well as a free trial. Please complete our online enquiry form and request an assessment. Together we can tailor a solution that fits your unique needs and abilities.

Options

VAS – Easy adaptation

The new VAS (variable adaptable seat) can be adjusted to the user’s body size. It comes with an adjustable padded
back support and a flat seat cushion.

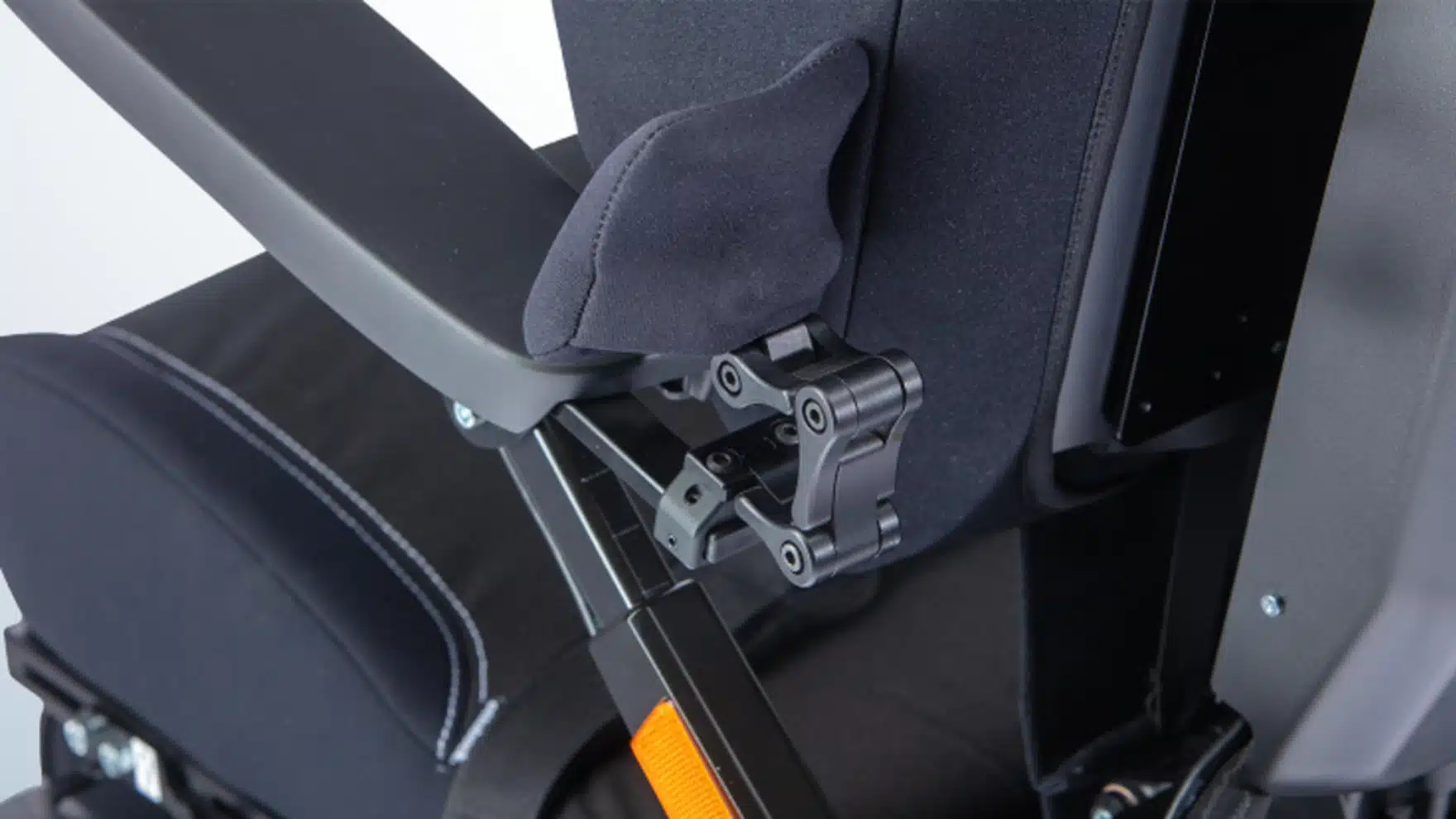

The Ergo Joint back support angle adjustment is almost entirely free from uncomfortable shear forces. The profiled
seat frame holds e. g. lateral guides and adapters for means of communication such as a talker. Elevating arm
supports and a broad range of leg support versions are available as options.

Control options include:

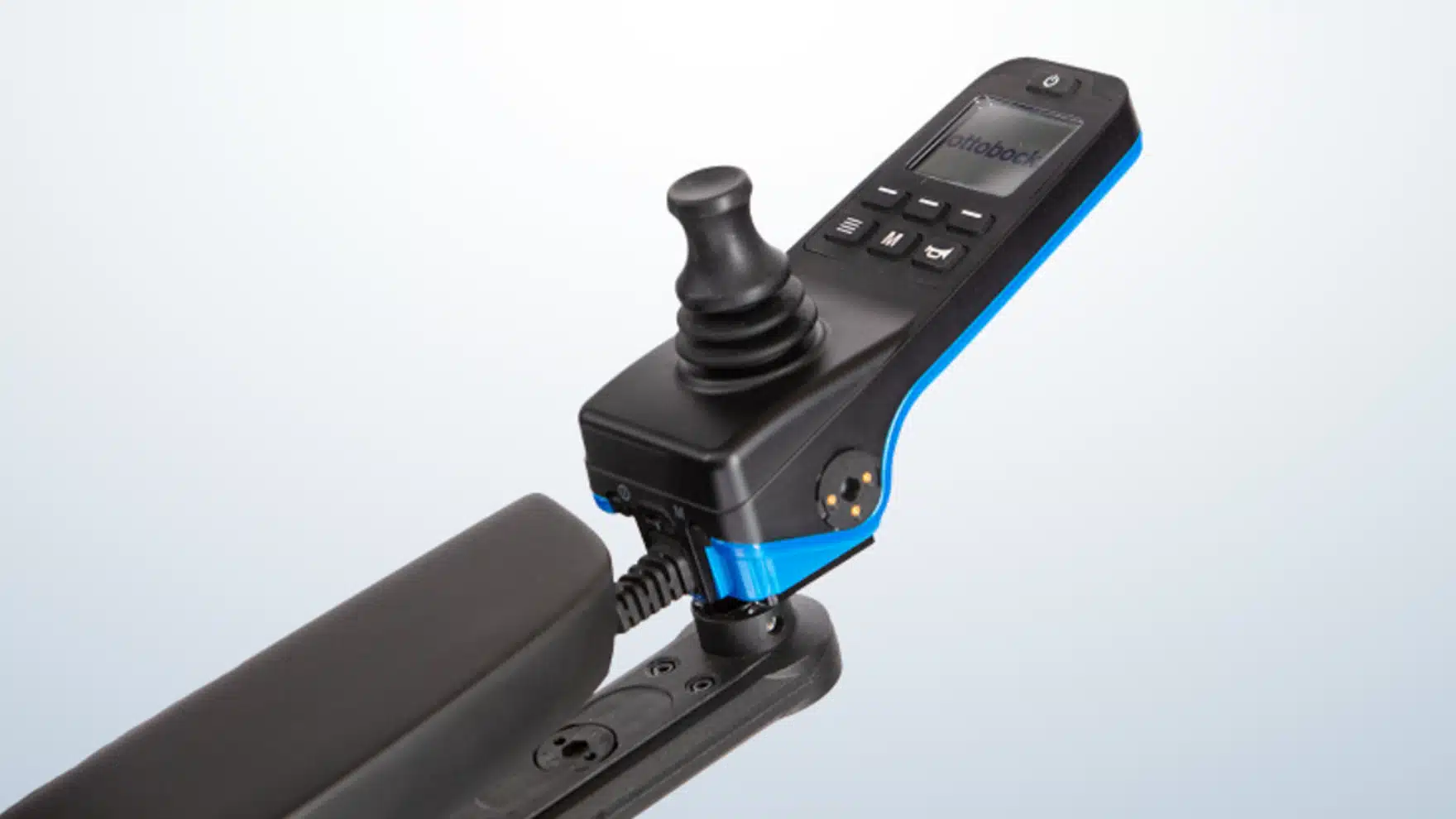

VR2 – All the essentials

The proven VR2 is our basic control device, which you can program to suit the personal needs of the user.

The control panel is divided into a keypad, an LED display and a joystick. The charging receptacle is on the bottom.
Depending on the power options installed on the B Series, one of two different control panel versions can be used on
the power wheelchair.

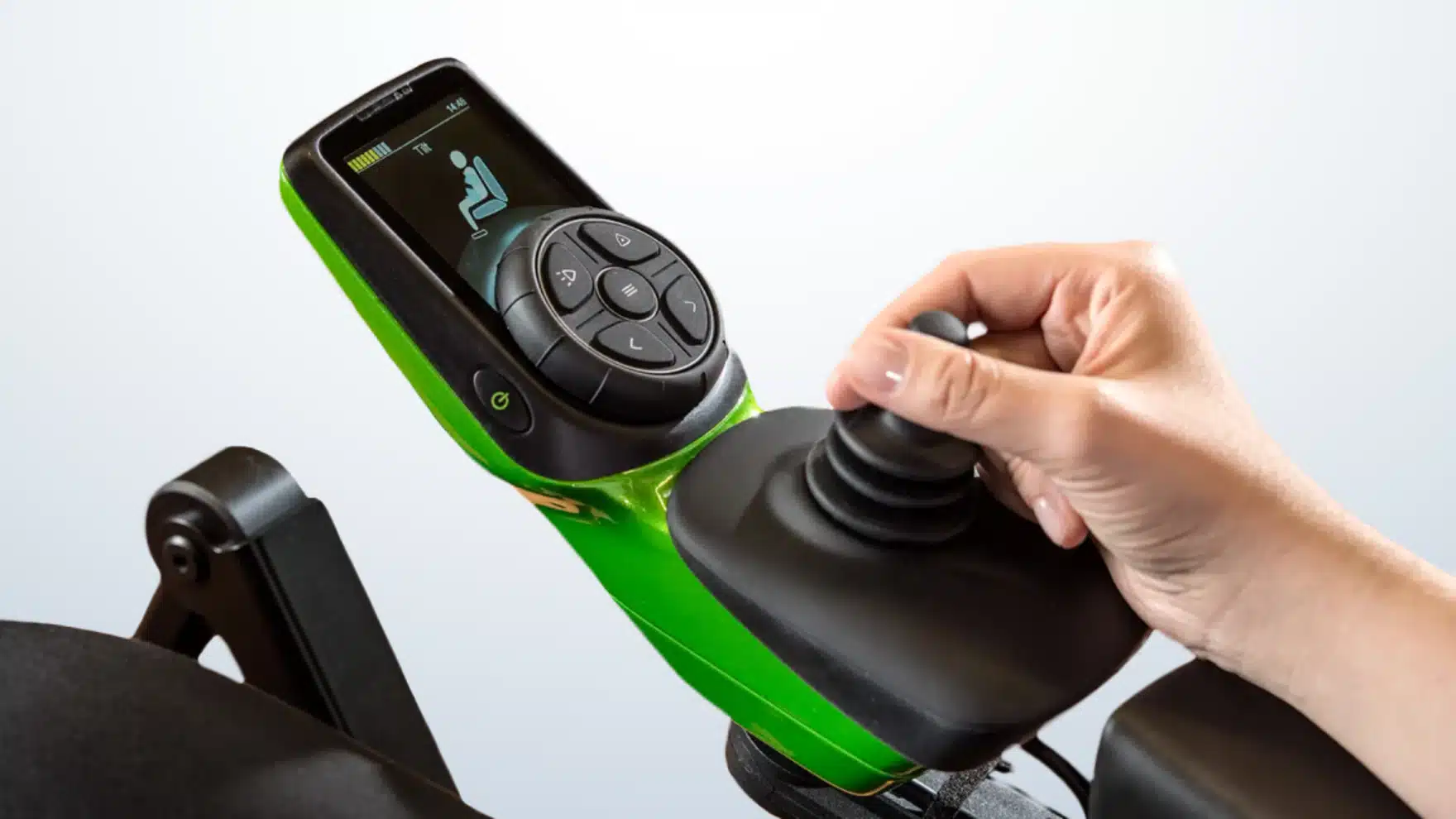

TEN° – The ergonomics revolution

In cooperation with specialist dealers, therapists and users, we have succeeded in developing a small revolution
in ergonomics: the soft hand support of the TEN° prevents premature fatigue, the innovative rotary dial with a 10° rotation angle permits fast regulation of the speed and the high resolution 3.5″ colour display ensures a good overview.
A huge plus in terms of service: the housing, display and hand support with joystick can be replaced individually.
Last but not least: the standard integrated Bluetooth and infrared interface connects the control device to external
communication devices quickly and reliably.
