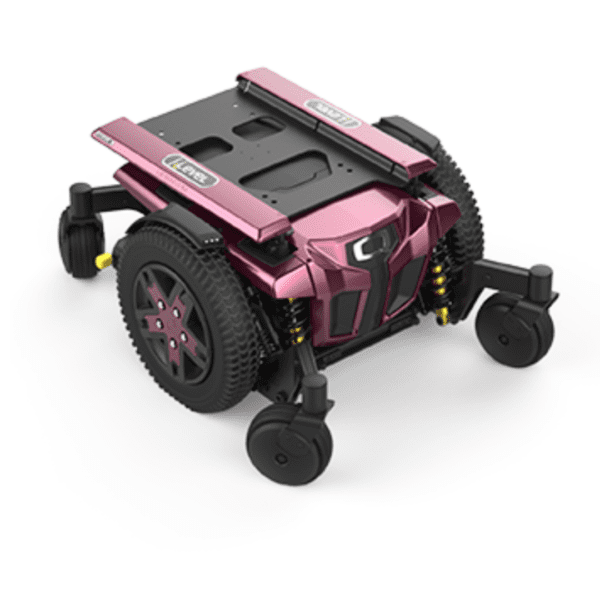

Quantum Q6 Edge3

The design of the Edge® 3 is for the most advanced power chair experience ever! Upgraded SRS (Smooth Ride Suspension) provides a smooth, comfortable ride and advanced stability. Optional iLevel® is available at 7km/h with up to 12″ of power adjustable seat height. Standard features include front and rear LED fender lights, a USB charger, and drive wheel colour accents. The Edge® 3 is available in a total of 20 colour options, including seven brand-new, bold colours.

Download Brochure

This product is not available for purchase online.

Categories: , ,

Description

  • Upgraded SRS (Smooth Ride Suspension)
  • Optional 7km/h with iLevel®
  • Optional iLevel’s patented Extra Stability Technology® enhances safety while performing transfers, reach, and numerous other activities of daily living
  • iLevel is retrofittable on the Edge® 3
  • Fender lights, USB charger, and drive wheel colour accents included

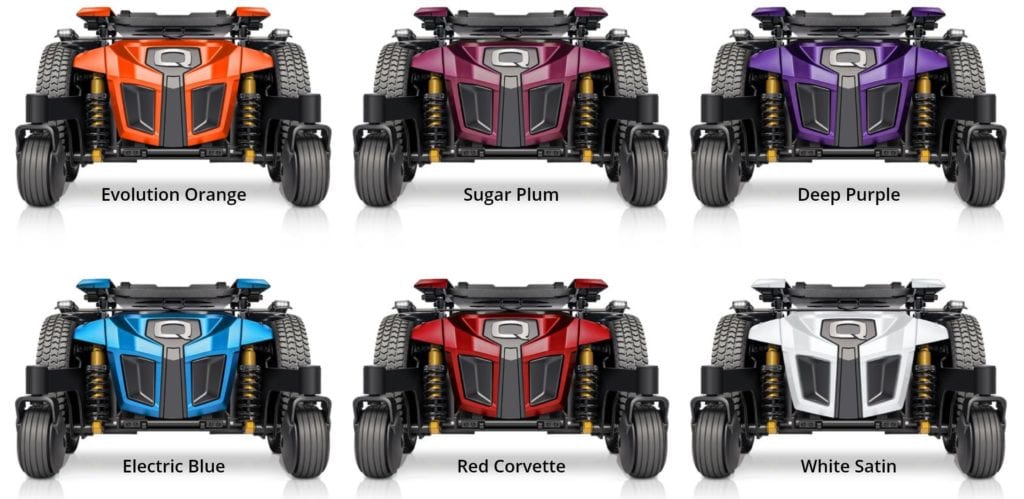

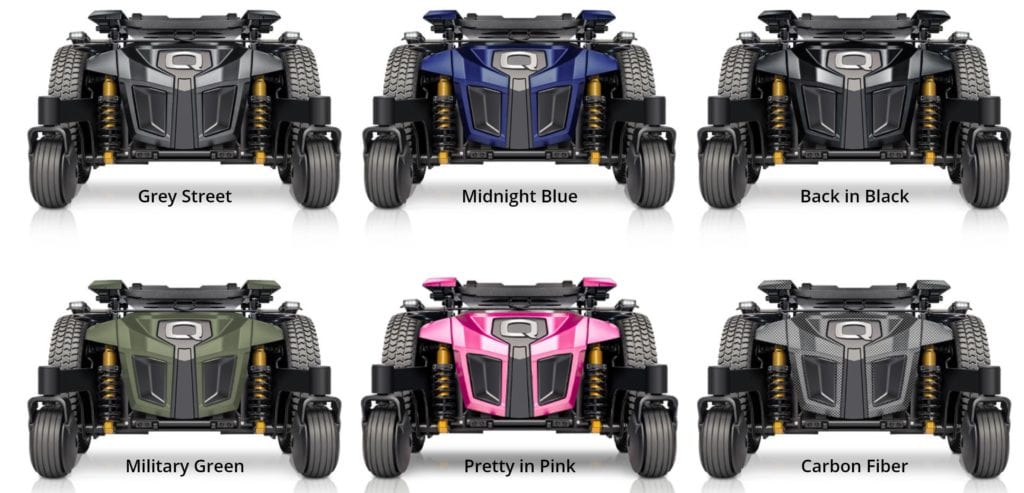

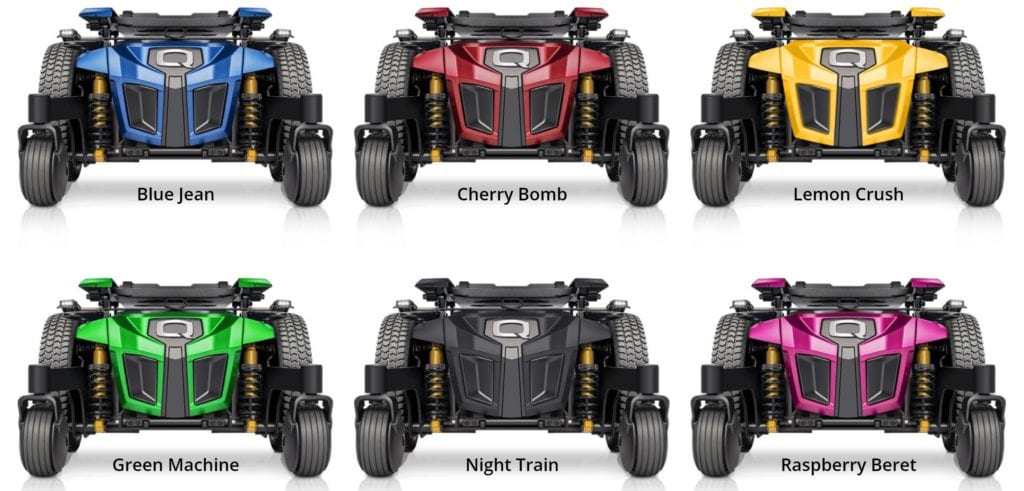

  • 7 bold colours and a total of 20 colour options
  • Made in America of foreign and domestic parts
  • Available with WC19 crash-test approved occupied transit kit option with captain’s seating, Synergy® seating, and TRU-Balance® 3 seating configurations.

We offer a full assessment service as well as a free trial.
Please complete our online enquiry form and request an assessment.
Together we can tailor a solution that fits your unique needs and abilities.

Enquire Now

Specifications

Model Q6 Edge® 3
Drive Configuration Mid-wheel drive
Drive Wheels 14″ solid
Optional: 14″ pneumatic
Optional: 14″ knobby
Caster Wheels Front: 6″ solid
Rear: 6″ solid
Maximum Speed4 Up to 10km/h
Up to 7km/h with iLevel activated
Ground Clearance 2.7″ (battery tray)
Turning Radius5 20.5″
Overall Length11 32.23″ without front riggings
Base Width 24.4″
Seating Sizes Synergy®: W: 10-22″; D: 10-22″
TRU-Balance® 3 Power Tilt: W: 12-22″; D: 12-22″
TRU-Balance® 3 Tilt and iLevel®: W: 12-22″; D: 12-22″
TRU-Balance® Flex Seating: 16.5=18.25″
Seat-to-Floor Heights16,17 Static Seat8: 16.5-18.5″
TRU-Balance® 3 Power Tilt8: 17.5-19.5″
TRU-Balance® 3 Tilt and iLevel®8: 17.5-19.5″
TRU-Balance® Flex Seating8: 16.5-19.5″
Manual Recline10 Yes
Battery Size6 NF-22 (2)
Battery Weight14 17kg each
Available Electronics12 120A Q-Logic 3 EX
75A Q-Logic NE
75A Q-Logic NE+
Battery Charger 8A off-board
Motor Packages 2-Pole, Mid-Wheel 6®
Weight Capacity 135kg
Base Weight 63kg

Request Demonstration

Product Enquiry

We offer a full assessment service as well as a free trial. Please complete our online enquiry form and request an assessment. Together we can tailor a solution that fits your unique needs and abilities.
