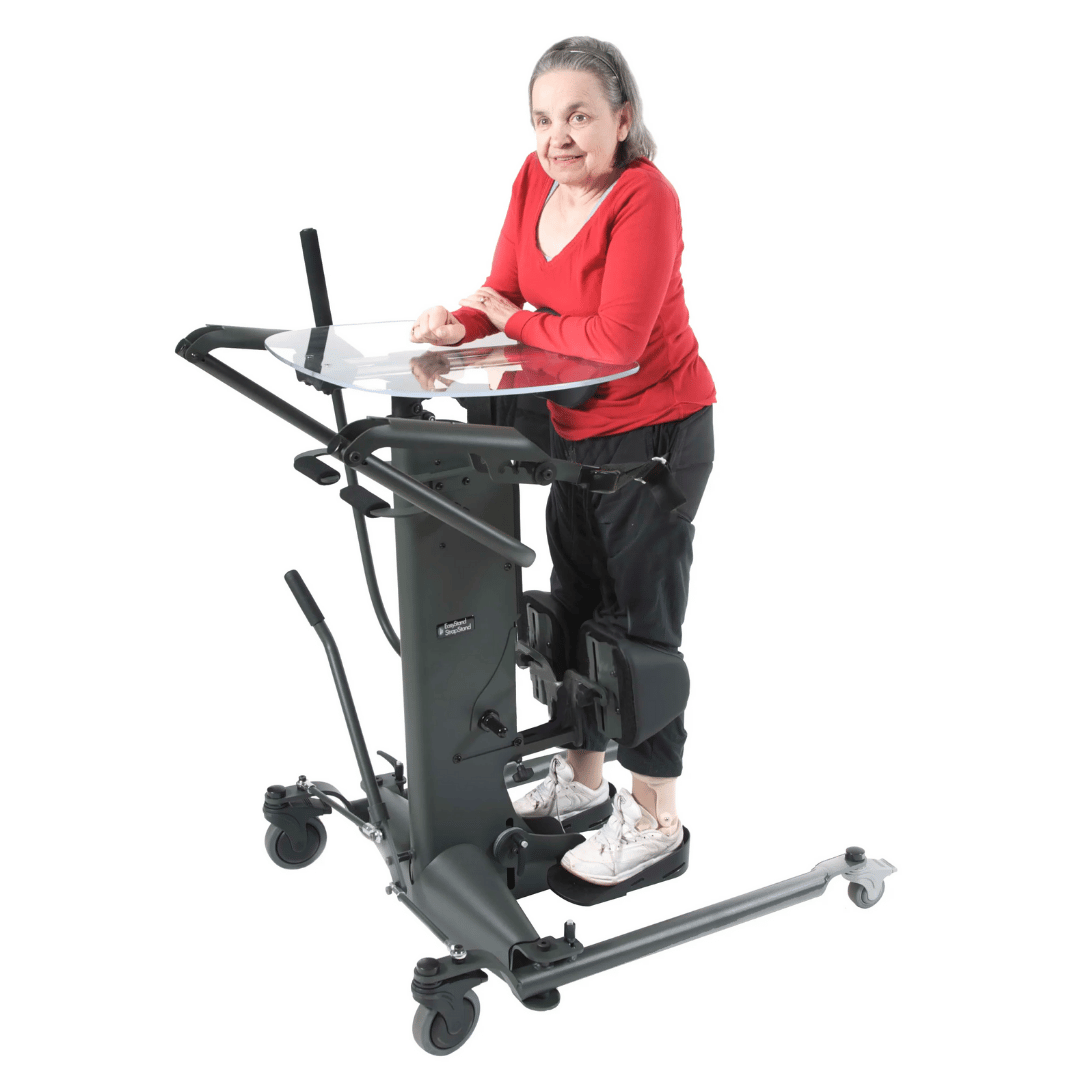

EasyStand StrapStand

The EasyStand StrapStand has the most innovative lift design of any strap-style stander.

Using dual-hinged lifting arms, the EasyStand StrapStand gently raises a user vertically then gradually pulls them to the standing position reducing knee pressure.  It gives people the option to stand without transferring.

Often, users are incapable of self-transfers or patient lifting is a concern for staff.  In these cases, standing is possible directly from a wheelchair, bed or other seated surface.

Download Brochure

This product is not available for purchase online.

Categories: , ,

Description

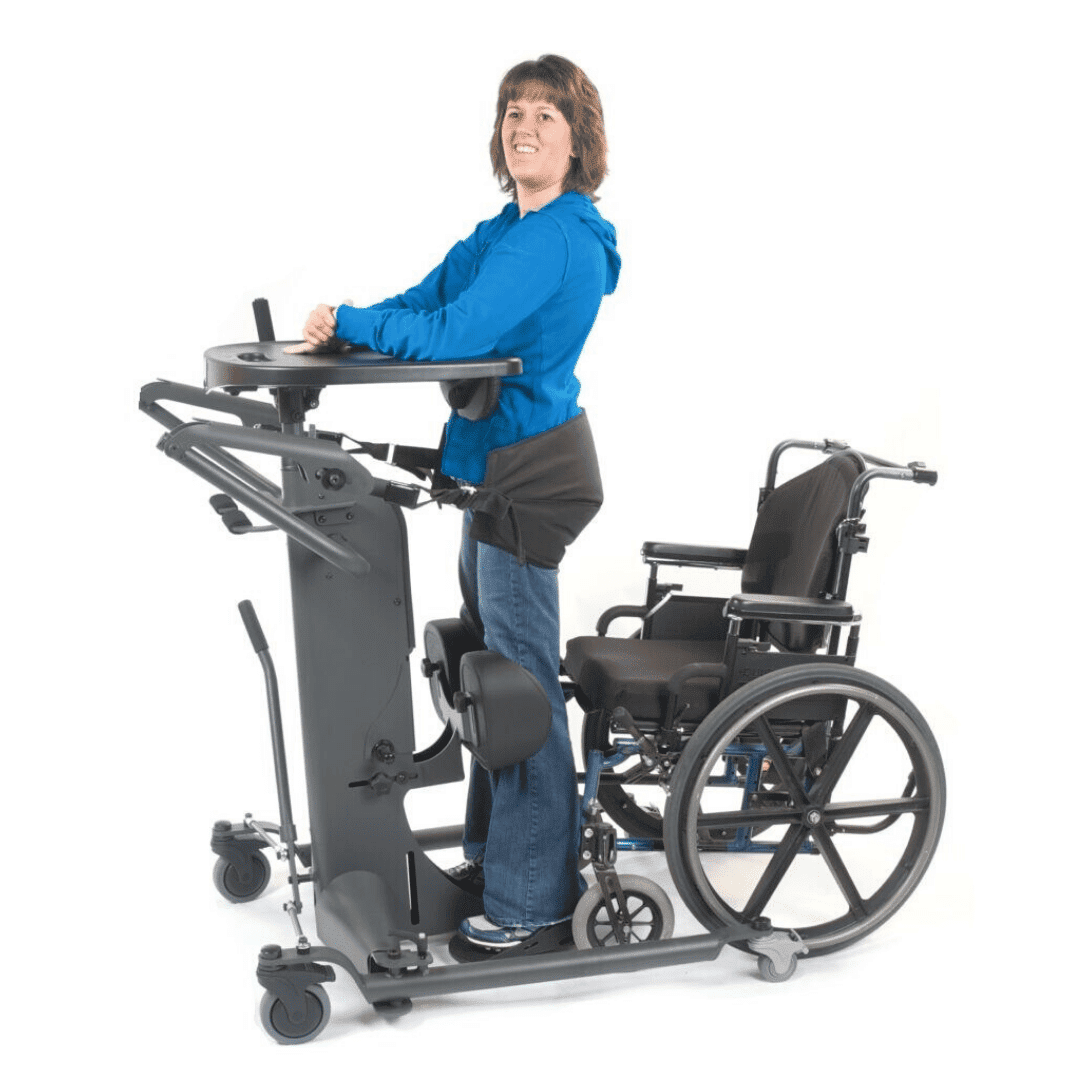

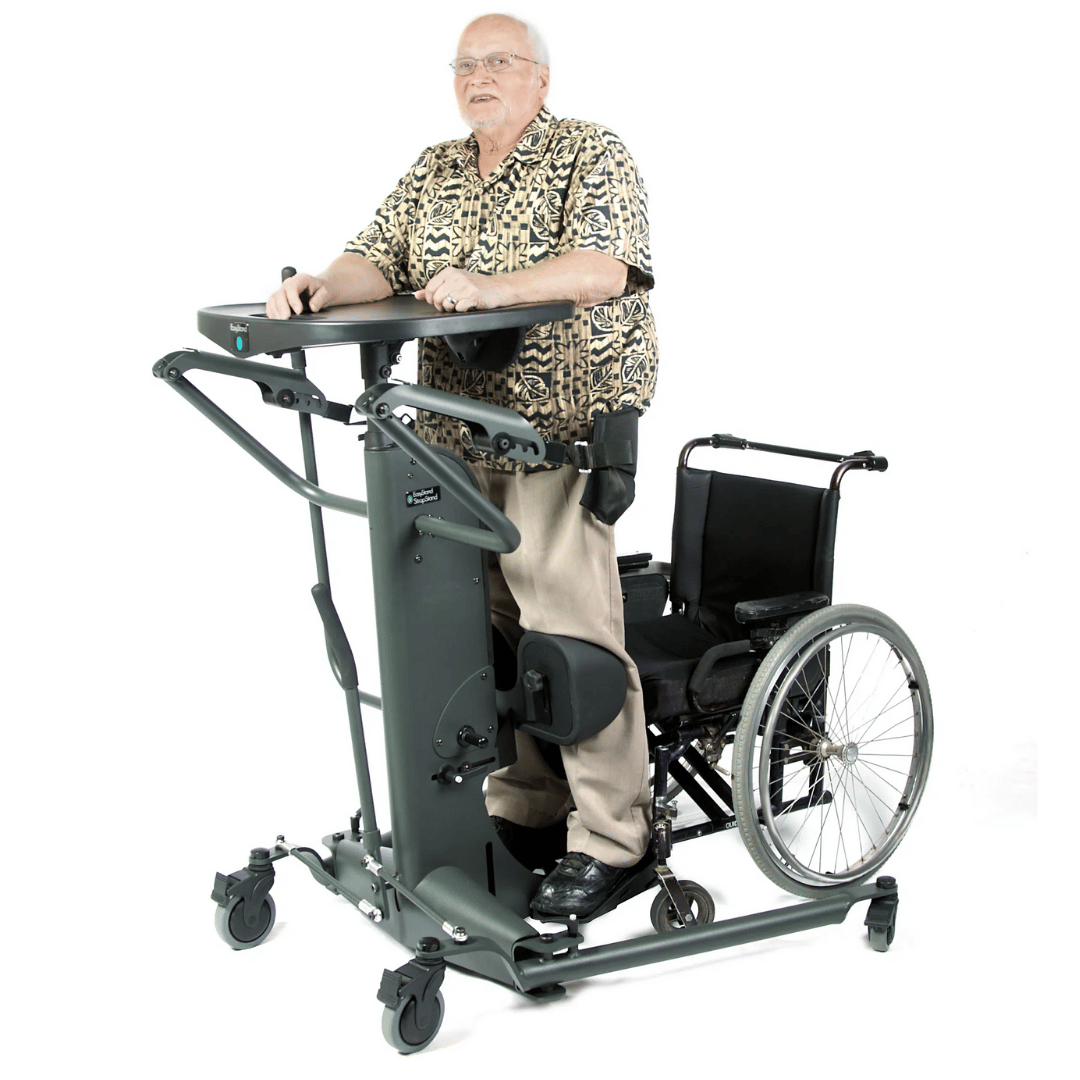

The EasyStand StrapStand is a strap style stander that lifts the user directly from a wheelchair, increasing compliance for people who have difficulty transferring.  Specially designed lifting arms raise the user up rather than putting pressure through the kneepads.

The standard unit comes with a large strap, kneepad, foot plates, formed table with front pad and hydraulic actuator with handle.

Who uses the StrapStand?

  • Adult users from 152-196 cm (5′ to 6’5”) and up to 159 kg (350 lbs)
  • People with Spinal Cord Injury,  Traumatic Brain Injury, Spina Bifida, Multiple Sclerosis, Stroke and more
  • Bariatric individuals
  • People who have difficulty transferring

What is the EasyStand StrapStand?

The EasyStand StrapStand is a sit to stand stander that lifts the user directly from a wheelchair.  It increases compliance for people who have difficulty transferring.  The specially designed lifting arms greatly reduce pressure on the knees.

Where would you use this product?

  • At home and in the workplace
  • Rehabilitation facilities and Hospitals
  • Veterans’ Hospitals
  • Extended Care Units, Nursing Homes & Group Homes

When would you use this product?

  • When hips and knees are tight because of extended wheelchair use
  • For those who prefer standing directly from a wheelchair
  • Immediately after injury for the greatest benefits

Why is the EasyStand StrapStand a better choice?

  • Lifting arms raise the user up rather than pushing them forward into the knee pad.
  • Narrow footprint allows for easy access through standard doorways.
  • Aesthetic design.
  • Heavier weight limit allows facilities to stand larger users.

We offer a full assessment service as well as a free trial.
Please complete our online enquiry form and request an assessment.
Together we can tailor a solution that fits your unique needs and abilities.

Enquire Now

Specifications

Height range 152cm – 195cm
Weight range 159kg
Kneepad height range (footplate to top of pad) 46cm – 53cm
Kneepad width 23cm
Kneepad depth range (from back of heel) 15cm – 24cm
Front pad depth range (from back of heel) 5cm – 32cm
Front pad height range (from footplate to centre of pad) 102cm – 142cm
Inside width/wheelchair access 58cm
Locking caster diameter 8cm
Standard footprint 86cm x 71cm
Frame colour Oxford grey
Upholstery colour Black
Weight of basic unit 57kg
Lifting strap – small 23cm x 64cm
Lifting strap – large 30cm x 71cm
Lifting strap – Xlarge 36cm x 81cm
Adjustable lifting strap – small 25cm x 66cm
Adjustable lifting strap – large 30cm x 74cm
Adjustable lifting strap – Xlarge 36cm x 81cm
Range of adjustable lifting straps 0cm – 20cm
Tray height (from footplate) subtract 2.5cm for acrylic 107cm – 147cm
Tray size (molded or acrylic) 53cm x 61cm
Swing-out legs footprint 76cm x 98cm
Swing-out legs inside access (wheelchair front width up to) 97cm
Actuator handle extension Adds 18cm
Angle adjustable tray range 0 – 35 degrees
Upper body support strap pad size 14cm x 61cm
Upper body support strap (adjustment range) 84cm – 178cm
Foot straps (range over arch) 18cm – 43cm
Secure foot option (range over arch) 18cm – 43cm
XL footplate – placement area (each foot) 18cm x 36cm
Independent knee pad depth range (from back of heel) 9cm – 20cm
Independent knee pad height range (from footplate) 43cm – 57cm
Independent kneepad size 18cm x 23cm
Independent kneepad Roho insert size 13cm x 19cm
Multi adjustable footplate (height from floor) 2.5cm – 13cm
Multi adjustable footplates toe out adjustment Neutral to +15 degrees
Multi adjustable footplates plantar/dorsiflexion adjustment -20/+20 degrees

Request Demonstration

Product Enquiry

We offer a full assessment service as well as a free trial. Please complete our online enquiry form and request an assessment. Together we can tailor a solution that fits your unique needs and abilities.

Options

Frame Style


  • P82188 Swing-Out Legs

Lifting Straps


  • 80719 Lifting Strap – 12″Wx28″L


  • 80811 Lifting Strap – 9″Wx25″L


  • 80881 Adjustable Lifting Strap – 12″Wx29″L


  • 80882 Adjustable Lifting Strap – 10″Wx26″L


  • 80962 Lifting Strap – 14″Wx32″L


  • 80963 Adjustable Lifting Strap – 14″Wx32″L


  • 82205 Adjustable Sling Strap – 9″Wx25″L


  • 82206 Adjustable Sling Strap – 12″Wx28″L


  • 82207 Adjustable Sling Strap – 14″Wx32″L


  • 82280 Adjustable Lifting Harness – 10″Wx26″L


  • 82281 Adjustable Lifting Harness – 12″Wx29″L


  • 82282 Adjustable Lifting Harness – 14″Wx32″L

Actuator Handle Accessories


  • P82264 Removable Actuator Handle


  • PNG50044 Quad Grip Handle Extension


  • PNG50070 T-Style Handle Extension

Trays


  • P82261 Narrow Clear Tray


  • P82262 Narrow Clear Angle Adjustable Tray


  • PNG50247-1 Black Molded Tray


  • PNG50248-1 Clear Tray


  • PNG50366-1 Clear Angle Adjustable Tray


  • PNG50368-1 Black Molded Angle Adjustable Tray

Tray Accessories


  • PNG30000 Large Contoured Chest Pad


  • PNG30295 Padded Tray Cover


  • PNG50042 Hand Grips

Knee Pads


  • P82202-1 Slide-In Knee Pads


  • P82101-1 Independent Knee Pads


  • P82189-1 Independent Roho Knee Pads

Foot Plates and Foot Plate Accessories


  • P82090 Multi-Adjustable Foot Plates


  • P82144 XL Foot Plate


  • PNG30030 Foot Straps-15″L


  • PNG30031 Secure Foot Straps-15″L


  • PNG50505 Foot Straps-21″L


  • PNG50506 Secure Foot Straps-21″L

Positioning Options


  • P80829 Upper Body Support Strap


  • P82062 Grab Handles

Other Accessories


  • P80809 Tool Pouch


  • P82160 Transport Handle
